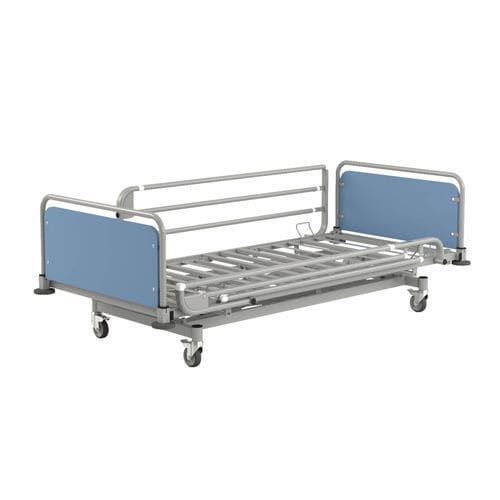

Hospital bed LEO MED

electricreverse Trendelenburgon casters

Overview
LEO MED is a hospital bed with a modern pantograph construction providing strong stability and an exceptionally wide height adjustment range. It is designed for clinical environments and combines low and high bed positions to support patient care workflows. Electrical actuators and the control box are integrated beneath the mattress platform for a compact profile.

Basic dimensions

• Overall width x length: 106 x 215 cm
• Mattress platform width x length: 90 x 200 cm
• Fitting mattress: 90 x 200 cm

Functions / Adjustment options

• Backrest adjustment (multi-section backrest)
• Calf section adjustment
• Autocontour capability (contour adjustment)
• Trendelenburg and reverse Trendelenburg positions
• Large range of height adjustment (nearly 50 cm)

Construction and safety features

• Modern pantograph construction with six support points ensures stability at all heights
• Frame in powder-coated steel with four-section bed frame and steel slats; components designed for rapid and effective disinfection
• Three-piece metal side rails folding along the mattress platform, protecting approx. 3/4 of bed length up to 385 mm height; automatic locking in upper position; lowering operation reserved for clinical staff. Manufactured according to EN-60601-2-5.
• Removable bed ends for cleaning and quick patient access

Controls and additional equipment

• 10-function ergonomic handset with one-hand operation and lockable individual functions
• Dedicated slots on both sides of the head section for installation of lifting pole and transfusion pole
• Four bumpers for protection during patient transport

Finishes

• Standard laminates / colours: WHITE, BLACK
• Non-standard colours available on request (to be agreed separately)

Technical specifications

• Model name: LEO MED
• Mattress platform: 90 x 200 cm
• Overall dimensions: 106 x 215 cm
• Lowest height: approx. 31 cm (varies with wheel diameter)
• Height adjustment range: nearly 50 cm
• Side rails: three-piece metal rails, protection up to 385 mm; EN-60601-2-5 compliant
• Maximum working load: 215 kg
• Warranty: 2 years
• Frame: powder-coated steel profiles; four-section frame with steel slats; bed ends: CDF Swiss board
• Controls: 10-function handset; electrical actuators and control box hidden under mattress platform
• Available additional equipment: lifting pole, transfusion pole (slots provided)
