Hospital bed 2

pneumaticbariatricheight-adjustable

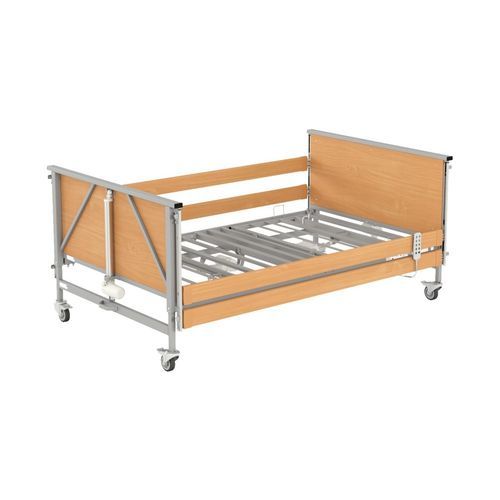

Bariatric 2 is a rehabilitation bed designed for patients requiring special support due to their size and weight. The model features a reinforced four-column construction, an increased mattress platform width and dedicated accessory sockets to improve patient handling and safety.

Product overview:

• CONSTRUCTION: Column type, four-column construction for high stability
• MATTRESS PLATFORM: Four-section mattress platform with steel slats for durability and easy disinfection
• BED ENDS: Non-enclosed, made of laminated board and solid beech wood
• CASTORS: 4 castors with directional and total lock
• CONTROL: Ergonomic 10-function hand controller with lockout feature operated by key
• SOCKETS FOR ADDITIONAL EQUIPMENT: Dedicated sockets on both right and left sides at the head end for accessories (lifting pole, IV stand)
• BED EXTENSION KIT: Optional kit to extend bed length by 20 cm (includes extension frame and extended side rails; easy self-installation)

Design, materials and safety features:
The frame is built from powder-coated steel profiles with a four-column design to ensure stability even at maximum height. The four-section mattress platform is fitted with steel slats to withstand heavy loads and allow easy disinfection. Bed ends combine laminated board and solid beech wood for a clinical yet warm finish. The backrest offers 4 cm autoregression to reduce shear and friction during profiling into a sitting position. Side rails can be fully lowered to improve ergonomic access and patient mobility without compromising safety. The mattress platform is wider than standard bariatric beds to enhance patient comfort.

Available finishes and options:
Available in multiple wood-effect finishes (examples: BEECH, LIGHT OAK, DARK WALNUT CARAVAGGIO, OAK SONOMA, OAK GOLDEN CRAFT). Custom colour finishes available at extra charge. Optional bed extension kit and accessory sockets included as described.

Technical specifications:

• Overall width x length: 132 x 220 cm
• Mattress platform width x length: 120 x 200 cm
• Height adjustment (working range): 39 - 81 cm
• Trendelenburg angle: 0 – 12°
• Reverse Trendelenburg angle: 0 – 12°
• Maximum working load: 372 kg
• Maximum patient weight: 320 kg
• Autoregression (backrest): 4 cm
• Castors: Ø100 mm, housing steel; wheel material polypropylene with thermoplastic rubber coating; rear-positioned total locking system
• Mattress platform sections: Four-section (backrest electrically adjustable; lower leg section with ratchet)
• Control: 10-function hand controller with ergonomic shape and movement lockout operated by key
• Bed ends: Non-enclosed (actuators and side rail guide mechanisms exposed)
• Construction: Powder-coated steel profiles, four-column construction
• Sockets for additional equipment: Standard on both sides at the head end
• Bed Extension Kit (optional): Extends length by 20 cm; includes dedicated extension frame and extended side rails; does not affect bed functionality
• Warranty: 2 years
