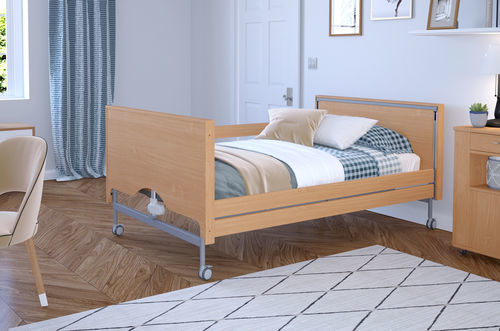

Hospital bed Taurus 2 WIDE LUX

electricmanualheight-adjustable

The Taurus 2 WIDE LUX is a four-column rehabilitation bed that combines proven Taurus series features with design solutions to increase comfort and usability. The WIDE variant provides an extra-wide mattress platform (120 cm) and the LUX version features decorative wooden enclosed bed ends that conceal actuators and the side rail sliding system.

Product overview:

• CONSTRUCTION: Column type (four-column construction providing greater stability)
• MATTRESS PLATFORM: Four-section
• BED ENDS: Enclosed (laminated board and solid beech wood; in LUX model head and foot ends fully enclosed to hide actuators and side rail guides)
• CASTORS: 4 castors Ø75 mm with directional and total lock
• CONTROL: 10-function hand controller (ergonomic shape; lockout feature operated by key)
• HEIGHT ADJUSTMENT: 39–81 cm
• MAXIMUM WORKING LOAD: 215 kg
• MAXIMUM PATIENT WEIGHT: 180 kg
• WARRANTY: 2 years

Key features and equipment:

• Increased mattress platform width — up to 120 cm for greater comfort.
• Four-column construction with powder-coated finish for high stability.
• Lowerable side rails allow complete lowering to facilitate getting up and sitting down while maintaining safety elements.
• Four-section mattress platform available with metal slats for easy disinfection or flexible wooden slats.
• Backrest section electrically adjustable via the hand controller; lower leg section adjusted using a ratchet mechanism.
• Covered bed ends (laminated board and solid beech) in LUX version conceal actuators and rail mechanisms.
• Hand controller: ergonomic, easy access to all bed adjustments, includes movement lockout operated by a key.
• Castors: four Ø75 mm with rear-positioned total locking system; housing: steel; wheel material: polypropylene with thermoplastic rubber coating.
• Sockets for additional equipment located at both sides of the head end for accessories such as lifting pole or IV drip stand.
• Optional Bed Extension Kit: extends bed length by 20 cm (includes extension frame and extended side rails; easy self-installation; does not affect bed functionality).
• Easy to store and transport with a dedicated transport adapter.
• Available in a wide range of wood colour finishes (standard and non-standard options; custom colour available at additional charge).

Available wood finishes (examples shown):

• BEECH
• LIGHT OAK
• DARK WALNUT CARAVAGGIO
• OAK SONOMA TABAC
• OAK SONOMA LIGHT
• OAK GOLDEN CRAFT

Technical specifications:

• Overall width x length: 135 x 214 cm
• Mattress platform width x length: 120 x 200 cm
• Height adjustment range: 39 - 81 cm
• Trendelenburg angle: 12°
• Reverse Trendelenburg angle: 12°
• Maximum working load: 215 kg
• Maximum patient weight: 180 kg
• Castors: Ø75 mm with directional and total lock
• Control: 10-function hand controller with lockout feature
• Warranty: 2 years
