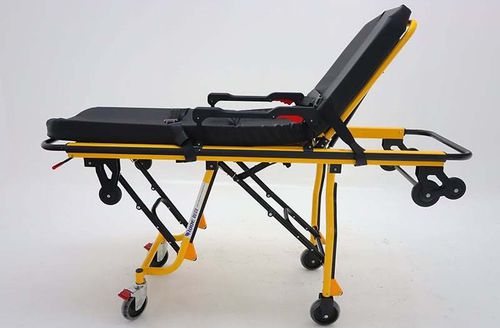

Emergency stretcher EA-3E plus

rescuefor ambulancestransport

Product Description
The EA-3E Plus Aluminum Alloy Ambulance Stretcher is designed for efficient patient transport in ambulances, emergency rescue, hospitals, and first-aid centers. Constructed from high-strength aluminum alloy with a hardened surface and powder-coated finish, it offers excellent durability, corrosion resistance, and lightweight handling for daily emergency operations.

Featuring a foldable leg mechanism, waterproof mattress, integrated IV pole, and secure locking system, the stretcher can be safely loaded into an ambulance by a single operator. Its ergonomic design, reliable safety features, and smooth maneuverability make it an ideal solution for modern emergency medical services.

Features

• High-strength aluminum alloy frame with hardened treatment and powder-coated surface for corrosion resistance and reduced weight.
• One-person loading operation enabled by foldable leg mechanism to speed up ambulance loading and reduce operator strain.
• Foldable leg mechanism with front/rear anti-folding safety locks for secure loading and stable transport.
• Adjustable backrest allowing multiple reclining positions to support patient comfort and medical procedures.
• Foldable aluminum alloy side rails for patient protection and easy lateral transfer.
• Integrated two-section reversible IV pole to support intravenous infusion during transport.
• Waterproof high-resilience foam mattress with PVC cover for patient comfort and straightforward disinfection.
• Large swivel casters with foot-operated brakes for smooth maneuvering and reliable stopping.
• Dual adjustable safety belts to secure the patient and minimize movement.
• Suitable for ambulances, emergency rescue teams, hospitals and EMS patient transfer operations.

Technical Parameters

• Model — EA-3E plus
• Max. Angle of Backrest — 88°
• High Position (L×W×H) — 192 × 59 × 89 cm
• Low Position (L×W×H) — 200 × 59 × 35 cm
• Packing Size (1 pc/CTN) — 207 × 62 × 38 cm
• Loading Capacity — ≤200 kg
• Net Weight — 40 kg
• Gross Weight — 45 kg
