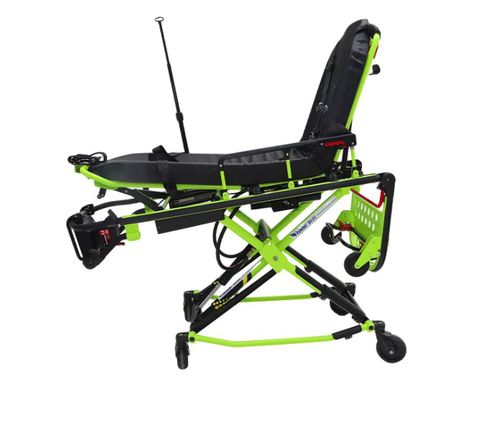

Transport stretcher trolley EA-3G Powered

emergencyfor ambulancesrescue

Product Overview
The EA-3G electric ambulance stretcher is engineered for professional emergency patient transport in ambulances and rescue operations. Built on a high-strength aluminum alloy frame with hardened surface plating, it offers corrosion resistance and a lightweight structure suitable for frequent clinical use. The advanced electric lifting system provides dual-speed control for rapid deployment or smooth height adjustments, reducing manual effort for medical personnel and improving patient handling.

Key Features

• Electric lifting system with dual-speed modes — fast and slow settings for quick operation or gradual adjustment to prioritise patient comfort.
• Hydraulic lifting stability — integrated hydraulic support ensures shock-free lifting and lowering.
• Emergency manual protection system — non-electric emergency device for safe operation during power failure or system malfunction.
• Pressure-release folding system — allows rapid manual folding in case of power outage.
• Integrated shock positioning device — foot section adjustable up to 20° to support anti-shock positioning without compromising airway management.
• High-strength aluminum alloy frame — hardened surface plating for structural strength, wear resistance and corrosion protection.
• Adjustable length design — bayonet-type synchronous folding mechanism for smooth length adjustment and easier passage through narrow corridors and elevators.
• 8-level height adjustment — X-type leg structure with 8 positions, maximum loading height 73 cm to match various ambulance floor heights.
• Enhanced patient safety — adjustable nylon side rails and vest-style three-point safety belts for secure patient restraint during transport.
• Comfortable PVC mattress — 10 cm thick concave mattress for stable body support and improved patient comfort.
• Three-stage adjustable IV pole — maximum adjustable height up to 71 cm for infusion support during transport.
• Wide ambulance compatibility — designed to fit multiple ambulance models and loading systems.
• Optional medical accessories — oxygen bottle holder, defibrillator tray, ventilator platform and other emergency support accessories available.

Technical Parameters
Length range: 160–205 cm
Height range: 46–112 cm
Castors: 4 × 6" universal wheels, 1 with foot brake pedal
Overall dimensions: 205 × 58 × 112 cm
Folded size: 211 × 58 × 46 cm
Backrest angle: 0–75°
Leg section angle: 0–20°
Capacity: Max. 300 kg (440 lbs)
Net weight (N.W.): 57.6 kg
Packing size: 213 × 60 × 48 cm (1 Unit / CTN)
Gross weight (G.W.): 75 kg
