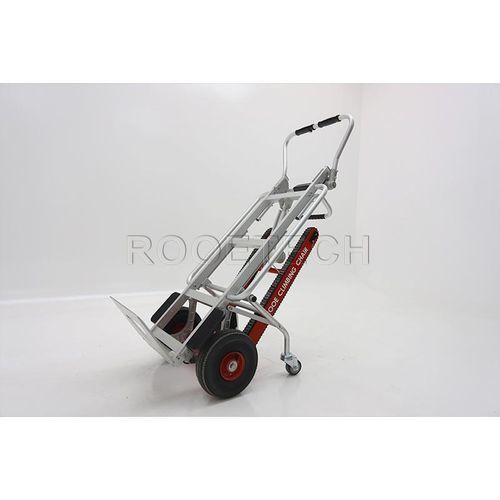

Stair climber EA-7FPN Plus

Product Description
The Aluminum Alloy Electric Stair Climbing Hand Truck EA-7FPN Plus is designed for efficient transport of heavy loads on staircases. With a lightweight aluminum alloy frame, removable lithium battery and brushless motor, it enables smooth ascent and descent with reduced operator effort. Suitable for warehouses, delivery services and industrial material handling.

Features

• Lightweight yet durable aluminum alloy construction for strength and corrosion resistance.
• Foldable loading platform to save storage space and improve portability.
• 10-inch pneumatic rubber wheels for shock absorption on uneven surfaces.
• Foldable auxiliary support wheels to enhance balance during transport and simplify storage.
• Adjustable handle angle with ergonomic bent top handle for operator comfort and control.
• Removable high-capacity 24V 13Ah lithium-ion battery for quick replacement and extended operation.
• Intelligent dual-speed control system with two selectable stair-climbing speeds.
• Powerful brushless 24V 200W motor providing strong climbing force and low noise.
• Electric pushrod track adjustment to adapt track angle to different stair slopes.
• Easy maintenance design for quick servicing and reduced maintenance costs.

Technical Specifications

• Model: EA-7FPN Plus
• Max Capacity: 300 kg (660 lbs)
• Battery: 24V 13Ah Lithium-ion Battery
• Charger: 29.4V 2A
• Motor: 24V 200W, 2-Speed Adjustable
• Dimensions (L×W×H): 73 × 56 × (117.5–150) cm
• Net Weight (N.W.): 35.5 kg
• Folded Size: 117.5 × 56 × 32 cm
• Packing Size: 120 × 58 × 35 cm
• Packing: 1 Set / Plywood Case
• Gross Weight (G.W.): 48 kg
