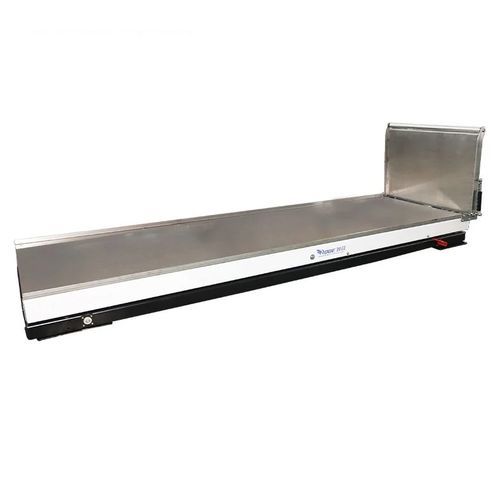

Ambulance stretcher EA-D8

transportemergencyhydraulic

In emergency rescue and patient transport, the stability and ease of operation of ambulance stretchers are of Paramount importance. Electric stainless steel stretcher platform designed to facilitate the loading and unloading of ambulance stretchers. It is intended for high-chassis ambulances (vehicles with chassis height up to 1.2 m) and improves loading/unloading efficiency and operational safety during emergency patient transport.


Features

• Wide application: specially designed for high-chassis ambulances to simplify stretcher loading operations and save time and labor.
• Electric push rod drive: platform tilt controlled by an electric/hydraulic push rod powered by the ambulance supply for smooth tilting and safe stretcher transfer.
• High-strength construction: stainless steel and aluminum alloy structure for corrosion and wear resistance, ensuring durable and stable performance.
• Guide rail system: platform can slide backward and forward on guide rails to enable on/off operations in confined spaces.
• Left/right translation: lateral translation for fine positioning inside narrow or complex interiors.
• Optional configuration: EA-D8 Plus offers a manual left/right sliding function (30 cm) as an option.

Technical specifications

• Model: EA-D8
• Material: Stainless steel & Aluminum alloy
• Feature: Basic type for ambulance; electric drive pusher; equipped with guide rail
• Power supply: DC 24V
• Dimension: 204 × 62 × 43.5 cm
• Capacity (max): 230 kg
• Net weight (N.W.): 115 kg
• Packing: 250 × 68 × 20 cm, 1 pc / Plywood case
• Gross weight (G.W.): 130 kg
• Optional: manual left/right sliding — 30 cm
