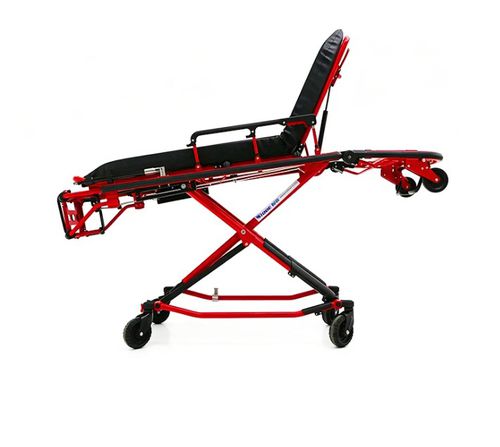

Emergency stretcher EA-3G Plus

for ambulancestransportfolding

Aluminum Alloy Ambulance Stretcher Introduction:
This stretcher is a professional solution designed for pre-hospital emergency care and in-hospital patient transport. Its main frame is constructed from high-strength aluminum alloy with hardening and surface spray treatment, offering an excellent balance of light weight and structural strength. The unique snap-type synchronous folding mechanism, combined with an adjustable overall length, allows the stretcher to flexibly navigate confined spaces such as elevators. The X-frame leg structure supports 7 levels of height adjustment, with a maximum loading height of 72 cm, ensuring smooth alignment with various ambulance models. Equipped with nylon inverted compound side rails, a three-point vest-style safety belt, and a 10 cm thick PVC waterproof mattress, the stretcher provides both safety and comfort throughout patient transport.

Aluminum Alloy Ambulance Stretcher Features:

• High-Strength Aluminum Alloy Frame: Hardened and surface-sprayed for wear and corrosion resistance, combining lightweight portability with structural durability.
• Flexible Folding and Length Adjustment: Features a snap-type synchronous folding mechanism with adjustable overall length, contracting to a minimum of 160 cm for narrow spaces such as elevators.
• 7-Level Height-Adjustable X-Frame Legs: Supports 7 height settings with a maximum loading height of 72 cm, facilitating smooth docking with different ambulance types.
• Inverted Compound Side Rails and Three-Point Safety Belt: Nylon side rails paired with a vest-style three-point belt effectively prevent patient lateral movement and ensure safe transport.
• 10 cm Thick PVC Waterproof Mattress: Concave design conforms to the body contour, with a waterproof and easy-to-clean surface for daily infection control needs.
• Inverted Compound Three-Section IV Pole: Telescopic design extends up to 100 cm, convenient for rapid IV setup during emergency care.
• Two-Person Operation Required: Designed to be lifted and loaded by two or more paramedics, ensuring stability and safety under load.
• Rich Optional Accessories: Supports add-ons such as an oxygen cylinder holder and a defibrillator/ventilator equipment rack. Equipped with 150 mm diameter casters, with an optional independent oxygen cylinder bracket.

Caractéristiques / Spécifications techniques:

• Model: EA-3G plus
• Length Range: 160 cm – 205 cm
• Height Range (7 levels): 44 cm, 50 cm, 65 cm, 77 cm, 88 cm, 100 cm, 110 cm
• Castor: 4 pcs 6" Universal Wheels, 1 with Foot Brake Pedal
• Dimension: 205 × 58 × 110 cm
• Folded Dimension: 208 × 58 × 44 cm
• Backrest Angle: 0 – 75 degree
• Leg Part Angle: 0 – 20 degree
• Capacity: Max. 300 kg (440 lbs)
• Net Weight: 43 kg
• Packing: 210 × 60 × 46 cm; 1 unit/CTN
• Gross Weight: 60 kg
