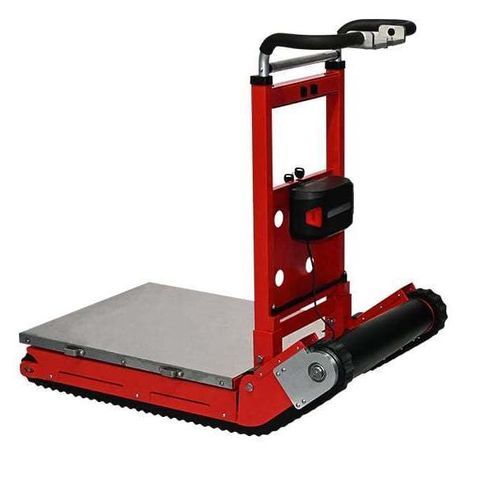

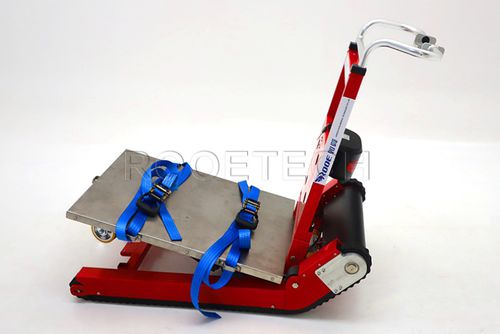

Aluminum hand truck EA-7FPN PRO

Product Overview
This electric battery-powered stair climbing hand truck provides an efficient solution for transporting heavy loads on stairs. Equipped with a motorized stair-climbing system and remote control operation, the trolley enables safe and controlled movement of goods up and down stairs while reducing manual effort. The unit features an aluminum alloy frame, foldable design, and a detachable lithium battery for portability. With a maximum load capacity of 400 kg, it is suitable for spiral staircases and confined multi-level environments.

Key Features

• Lightweight & durable construction: aluminum alloy frame with baked enamel finish for easy cleaning and long service life.
• Spiral stair compatibility: designed to operate on spiral and curved staircases, ensuring stable transport in narrow or turning spaces.
• Detachable remote control: removable remote controller for flexible and safe operation during stair climbing.
• Customizable appearance: exterior color can be customized to customer requirements.
• Ergonomic & safe handling: non-slip plastic handle and retractable lifting handle for improved safety and comfort.
• Foldable & space-saving: folds compactly for storage and transport.
• Adjustable control lever: top control lever with three adjustable positions to suit different operating needs.
• Detachable lithium battery: removable lithium-ion battery for convenient charging and replacement.

Additional Description
The power drive system facilitates smooth movement of loads on stairs, increasing operational efficiency and reducing physical strain. The product is delivered in red by default and supports optional color customization. Remote control operation and compact folded dimensions make it adaptable to varied site scenarios.

Technical specifications

• Model: EA-7FPN PRO
• Material: Aluminum alloy
• Color: Red (customizable)
• Capacity: Max. 400 kg (880 lbs)
• Dimensions of the Wheels: 3 inch / 4 inch
• Battery: 24V 13Ah Lithium-ion battery
• Charger: 29.4V 2A
• Battery Life: 60–90 mins
• Estimated Charging Time: 7 hours
• Motor: 24V 200W brushless motor
• Overall Length: 1000 mm
• Length of the Load Surface: 670 mm
• Overall Width: 620 mm
• Width of the Load Surface: 585 mm
• Length of the Crawler Track Support: 700 mm
• Max. Overall Height: 985 mm
• Min. Height of the Handle: 1510 mm
• Height of the Load Surface Above Ground: 180 mm
• Max. Negotiable Height of the First Step: 225 mm
• N.W. (Net Weight): 79 kg
• Folded Size: 1000 × 620 × 455 mm
• Packing Size: 1155 × 670 × 535 mm
• G.W. (Gross Weight): 91 kg
