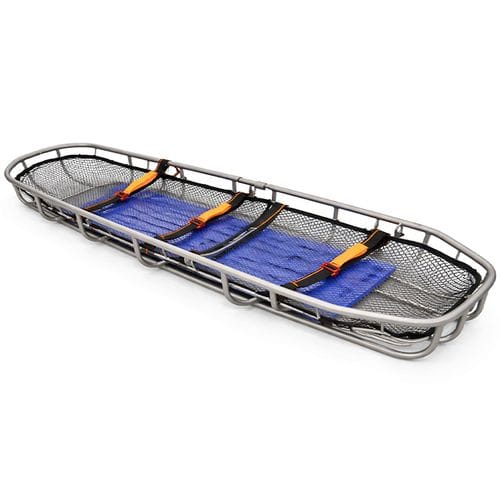

Basket stretcher EA-7C plus

emergencyrescuefor air rescue

The titanium alloy basket stretcher is a high-performance transport device designed specifically for complex rescue environments, widely used in medical emergency response, fire rescue, and wilderness search and rescue. Constructed from high-strength titanium alloy, it significantly reduces overall weight while ensuring structural stability, making transport easier and more efficient for rescue personnel.

Its ergonomic design conforms to the curves of the human body, allowing for greater flexibility in confined spaces or complex terrain, effectively improving the safety and comfort of patient transfer.

Features:
1. Lightweight and High-Strength, Enhancing Rescue Efficiency
Made of titanium alloy, characterized by low density and high strength, it significantly reduces weight while maintaining load-bearing capacity, minimizing physical exertion for rescue personnel.

2. Versatile and Environmentally Adaptable
Supports vertical lifting, horizontal transport, and ramp transfer, making it suitable for complex environments such as mountains, high altitudes, underground wells, and confined spaces.

3. Split-Section Stacking Design for Easy Transportation and Storage
The stretcher features a split structure design; the two sections can be quickly stacked for storage, saving space and facilitating transportation and carrying.

4. High-strength structure, safe and reliable
One-piece molded curved pipe design, stable structure
Full welding process for secondary pipes enhances overall strength
Threaded connection of the main body allows for quick disassembly from the middle
“Seven-point interlocking” design on both sides ensures a firm and secure connection

5. Multi-point suspension system, flexible operation
Equipped with 5 attachment points (distributed on both sides and the tail), supporting multiple lifting methods:

-Four-point suspension: Keeps the stretcher stable and improves comfort
-Three-point suspension: Facilitates quick adjustment of posture to adapt to complex rescue needs

6. Humanized support design, enhanced comfort
Equipped with a durable polyethylene back panel, providing support extending to the lower legs
13mm mesh flame-retardant padding enhances breathability and safety
Four quick-release fixation straps quickly secure the patient and prevent slippage

7. Convenient operation, rapid deployment
The main pipe has a 25mm diameter, providing a comfortable and stable grip; the overall structure supports quick assembly and disassembly for rapid deployment in emergency situations.

Technical parameters
Model: EA-7C plus
Expanded size (L×W×H): 2100 × 600 × 200 mm (±20 mm)
Tube diameter: 25 mm
Maximum load capacity: 300 kg
Net weight (excl. accessories): 6.8 kg
Gross weight: 12.3 kg
