Heart vascular model PLXG1001

descending thoracic aortafemoral arteryblood vessels

Overview

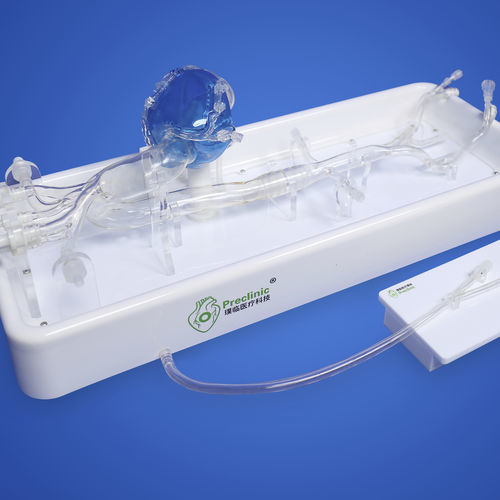

The PLXG1001 coronary artery simulation model is a 3D anatomical training and testing device made from highly transparent soft silicone. It is developed for coronary intervention training, device performance testing and procedural demonstration, supporting realistic practice with guidewires, catheters, stents and rotational devices.

Features

• Accurate anatomical replication of core vessels including thoracic aorta, abdominal aorta, left main coronary artery and major coronary branches to match clinical intervention scenarios.
• Main vessels manufactured in food-grade soft silicone with material transparency ≥ 90% for clear visualization of device movement inside vessels.
• Detachable chest/abdominal vessel sections; compatible with a flexible transparent stenosis module (stent/balloon training), a rigid rotational grinding module (rotational atherectomy training) and customizable aneurysm modules.
• Dual vascular access (femoral and radial) corresponding to clinical instrument paths; optional connection to pulse pumps and temperature-controlled water tanks to simulate temperature, pressure, flow and pulse.

Applications & Supported Training / Testing
Supports testing and evaluation of coronary intervention instruments (guidewires, catheters, vascular stents, coils, thrombectomy devices, rotational grinders) and hands‑on training for coronary angiography, stent implantation, aneurysm procedures and thrombectomy. Custom aneurysm scenarios can be provided for specialized device tests.

Material Safety & Observability
Main body made of food-grade soft silicone (hardness 30A) with transparency ≥ 90%, enabling precise observation of positioning, implantation and device movement while providing realistic tactile feedback. Components are durable, easy to clean and undergo strict quality control.

Differences between model configurations

• Coronary Artery Simulation Model: human-shaped shell base not supported; acrylic base not supported; light-emitting base plate not supported; heart shell is a hard support shell.
• Coronary Training Model - A: human-shaped shell base supported; acrylic base supported; light-emitting base plate supported; heart shell is a hard support shell.
• Coronary Training Model - B: human-shaped shell base supported; acrylic base supported; light-emitting base plate supported; heart shell made of silicone connected to aortic root — with pulse pump and water fill it can simulate pulsation (empty cardiac cavity, no internal structure).
• Coronary Training Model - C: no cardiac shell; coronary arteries fixed on a base with more branches than types A and B; acrylic and light-emitting bases not supported.

Drawing / Imaging
Includes high-transparency photographic views and 3D illustrative drawings for structure reference, training scenarios and configuration selection on the product page.

Technical specifications

• PN: PLXG1001
• Main material: highly transparent soft silicone; hardness: 30A
• Model dimensions: length 63 cm; width 25 cm; height 22 cm
• Vessel transparency: ≥ 90%
• Access approaches: femoral artery and radial artery (dual access)
• Detachable chest/abdominal vessels with optional stenosis and rotational modules
• Optional supporting equipment: pulse pump, temperature-controlled water tank (sold separately)
• Lead time: 15 days
• Origin: Shanghai, China
