Coronary arteries vascular model PLXZXG001

pulmonary arterycardiac veininternal jugular vein

Overview

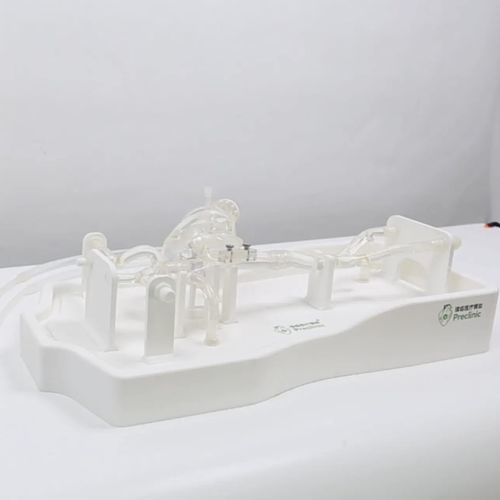

The model is built from Chinese clinical CT/MRI imaging data and reproduces core cardiac venous and right heart anatomy at a 1:1 scale, including the inferior vena cava, right atrium, right ventricle, pulmonary artery, coronary sinus and branches of the coronary vein. It also represents adjacent vessels such as the internal jugular, subclavian, superior vena cava and iliac veins. Designed for procedural training and device evaluation, the model supports manipulation of guidewires, catheters and vascular stents for cardiac pacemaker electrode implantation and coronary vein interventions in medical schools, hospital training centers and medical device companies.

Features

• Accurate reconstruction of coronary vein morphology and surrounding vasculature based on Chinese clinical imaging; anatomical dimensions validated by the Shanghai Society of Anatomy.
• Focused on coronary vein intervention scenarios and pacemaker lead implantation training; compatible with functional testing of guidewires, catheters, vascular stents and thrombectomy devices.
• X‑ray transparent material allows training and device testing under DSA imaging.

Specifications

• Product name: Cardiac Veins Simulation Model (Pacemaker Electrode Implantation)
• Model / PN: PLXZXG001
• Main material: Highly transparent soft silica gel; hardness 30A
• Dimensions (L × W × H): 75 cm × 37 cm × 28 cm
• Scale: 1:1 (based on Chinese clinical CT/MRI imaging)
• X‑ray transparency: Yes (supports DSA imaging)
• Supported training: Cardiac pacemaker lead implantation, coronary vein intervention skills, instrument performance testing
• Compatible instruments: Guide wires, catheters, vascular stents, thrombectomy stents
• Optional accessories for blood flow simulation: Pulse pump, temperature-controlled water tank, power supply (not included)
• Lead time: 15 days
• Origin: Shanghai, China

FAQ

• Q: What surgical training does this model primarily support? Which interventional devices are compatible? A: The model primarily supports simulation training for cardiac pacemaker lead implantation and coronary vein interventions. It is compatible with the operation and performance testing of guidewires, catheters, vascular stents and thrombectomy devices to match clinical skills training and device verification needs.
• Q: Is additional equipment required for blood flow simulation and is connection/operation complicated? A: Optional equipment such as a pulse pump, temperature-controlled water tank and power supply are required for dynamic blood flow simulation (not included). The analog pump parameters can be adjusted to control pressure, flow, frequency and temperature. The model features an integrated base circulation design with clearly labeled interfaces; connection follows the provided manual and is straightforward.
