Heart vascular model PLXZXG003A

blood vesselscoronary arteriescoronary artery

Product overview

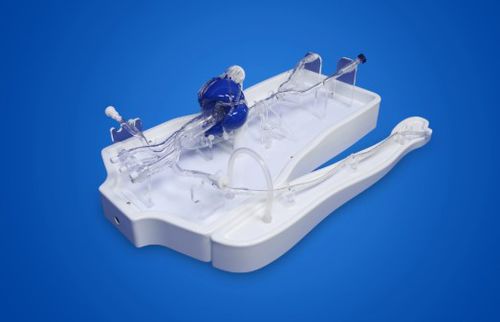

Coronary Training Model - A (PN: PLXZXG003A) is an anatomically accurate interventional simulator developed from 1:1 clinical CT/MRI imaging. Manufactured in food‑grade high‑transparency silicone (transparency ≥ 90%) with Shore hardness 30A, the model reproduces coronary vascular anatomy and procedural tactile feedback to support standardized, repeatable training in coronary interventions. It is compatible with common interventional instruments and imaging environments used in clinical practice.

Key features

• Instrument compatibility: guidewires, diagnostic/guide catheters, balloon catheters and intravascular stents, matching standard clinical instrument types.
• Procedure simulation: supports coronary angiography, percutaneous transluminal coronary angioplasty (PTCA), percutaneous coronary stent placement and balloon angioplasty for native or artificial stenoses.
• Modular lesion replacement: interchangeable modules for aorta, femoral artery and coronary stenosis segments enable rapid scenario changes for targeted training.
• Imaging and hemodynamics: X‑ray transparent material suitable for DSA/fluoroscopy training; adjustable blood‑flow parameters to mimic physiological conditions.

Product specification table
PN: PLXZXG003A
Main material: food‑grade high‑transparency soft silicone (transparency ≥ 90%)
Hardness: 30A
Dimensions: 75 cm (L) × 37 cm (W) × 28 cm (H)
Lead time: 15 days
Origin: Shanghai, China

Model comparison
Coronary Artery Simulation Model: supports human‑shaped shell base; acrylic shell base not supported; lighted base plate not supported; heart is hard‑shell used only to support coronaries.
Coronary Training Model - A: supports human‑shaped shell base, acrylic shell base and lighted base plate; heart is hard‑shell supporting coronaries.
Coronary Training Model - B: supports human‑shaped and acrylic shell bases and lighted plate; heart made of silicone connected to aortic root, pulsatile with pump (hollow cavity, no internal structure).
Coronary Training Model - C: supports only human‑shaped shell base; no cardiac shell, coronaries fixed to base with more branches than A/B.

Drawings
Dimensional drawings and schematic illustrations are provided for Coronary Training Model - A to show main dimensions and layout of interchangeable vascular modules.

FAQ (selected)

• How are pathological vascular segments replaced? The model uses a modular design for main vessels. Remove the target module and install the replacement lesion segment. Available modules include aorta, femoral artery, radial artery and straight/curved coronary stenosis segments for quick scenario changes.
• Which vascular access points are available for puncture training? The model provides femoral, radial and subclavian access points to cover common coronary intervention approaches.

Technical characteristics / specifications

• Model name: Coronary Training Model - A
• PN: PLXZXG003A
• Main material: food‑grade high‑transparency soft silicone (transparency ≥ 90%)
• Hardness: 30A
• Dimensions: 75 cm (L) × 37 cm (W) × 28 cm (H)
• Compatibility: guidewires, catheters, balloon catheters, intravascular stents
• Supported procedures: coronary angiography, PTCA, percutaneous coronary stenting, balloon angioplasty (including artificial vascular stenosis)
• Functions: modular lesion replacement (aorta, femoral artery, coronary stenosis segments), X‑ray transparency (suitable for DSA training), adjustable blood‑flow parameters
• Access training points: femoral artery, radial artery, subclavian artery
• Lead time: 15 days
• Origin: Shanghai, China
