Iliac vein vascular model PLXZXG006

vena cavafemoral veinpulmonary artery

Product overview

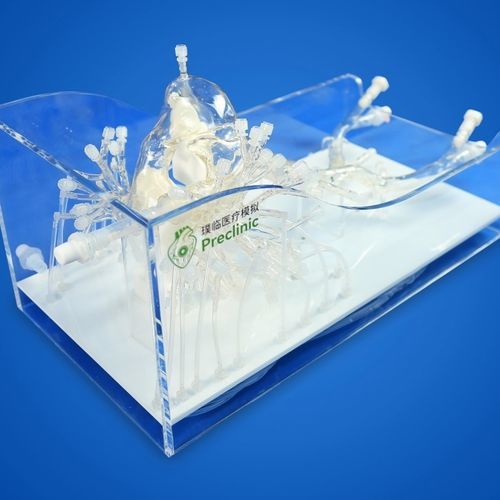

The model is built from Chinese clinical CT/MRI datasets and reproduces at 1:1 scale the anatomical structures of the right atrium, pulmonary artery (including 4–5 branches), inferior vena cava, iliac vein and femoral vein. The main body is cast in food‑grade, highly transparent silicone mounted on a clear acrylic base to allow direct visualization during interventional procedures. Intended for right‑heart and pulmonary artery endovascular training and device testing.

Features

• Anatomical fidelity based on Chinese clinical imaging with vessel wall hardness and elasticity calibrated to approximate human tissue.
• Highly transparent silicone (transparency ≥ 90%) enables clear observation of device movement and positioning within vessels.
• Supports core interventional training: pulmonary angiography, aneurysm procedures, thrombectomy and pulmonary artery stenosis interventions.
• Compatible with guidewires, catheters, vascular stents, spring coils and thrombectomy stents for training and instrument validation.

Specifications
PN: PLXZXG006
Main material: Highly transparent food‑grade silicone (soft silica gel), hardness: 30A
Scale: 1:1 (based on Chinese clinical CT/MRI data)
Dimensions (L × W × H): 75 cm × 37 cm × 28 cm
Base: Transparent acrylic base
Lead time: 15 days
Origin: Shanghai, China

Drawings

• Main dimensions and layout of the right cardio‑pulmonary artery simulation model
• Technical drawing available on request for integration into training stations

FAQ

• Q: What training and device tests does this model support? A: Supports pulmonary angiography, thrombectomy, pulmonary artery stenosis interventions and related modules. It adapts to operation and testing of guidewires, catheters, vascular stents, coils and thrombectomy stents. Custom aneurysm variants can be produced for specific scenarios.
• Q: What additional equipment is required to simulate blood flow and is setup complicated? A: Optional accessories include a pulse pump, temperature‑controlled water tank and power supply (not included). Flow simulation is achieved by connecting inlet/outlet ports via tubing; temperature, pressure, flow rate and pulse parameters are adjustable. Connection is straightforward: follow markings, fill with water and suitable lubricant, verify seals before use. A detailed user manual is provided.

Technical specifications

• Model name: Right Cardio‑Pulmonary Artery Simulation Model
• PN: PLXZXG006
• Main material: Highly transparent food‑grade silicone (transparency ≥ 90%), hardness 30A
• Base: Transparent acrylic base
• Supported training: Pulmonary angiography, aneurysm procedures, thrombectomy, pulmonary artery stenosis interventions
• Compatible instruments: Guidewires, catheters, vascular stents, spring coils, thrombectomy stents
• Dimensions (L × W × H): 75 cm × 37 cm × 28 cm
• Optional accessories: Pulse pump, temperature‑controlled water tank, power supply (not included)
• Lead time: 15 days
• Origin: Shanghai, China
