Cardiopulmonary care training manikin PLXZXG016

for cardiac sonographyfor TEEfor ultrasound imaging

Product overview

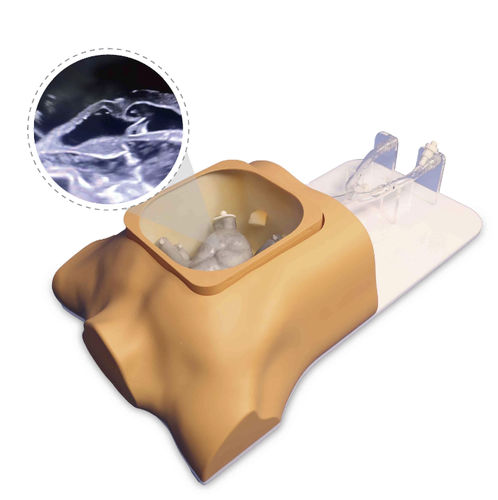

The model comprises three main components: an ultrasound‑compatible cardiac core, an ultrasound‑compatible esophagus module and a vascular pathway from the inferior vena cava to the femoral vein. Reconstructed from anonymized human CT data and optimized with anatomical references, the model is manufactured from a specialized ultrasound‑visible gel combined with transparent food‑grade silica and silicone vessels. It supports core ultrasound exploration and hands‑on procedures including transesophageal echocardiography (TEE), intracardiac echocardiography (ICE), mitral and tricuspid valve repair practice, and electrophysiology catheter training. The modular design and included air transport case facilitate transport for medical schools, hospital ultrasound departments and cardiology training centers.

Features

• Central anatomy reproduced in an ultrasound‑visible gel core matched with transparent silicone vessels to deliver clinically realistic ultrasound images of cardiac structures, atrioventricular septal continuity and valve position/mobility.
• Designed for use with ICE catheters, TEE probes and standard clinical instruments; supports exploration and practical training for TEE and ICE, mitral/tricuspid repair simulations and electrophysiology catheter manipulation. Lesion modules (e.g. ASD, VSD) can be customized for case‑based simulation.

Drawings / Images
Main dimension drawings and technical illustrations showing model layout, component placement and interface points are provided to assist clinical setup and device compatibility verification.

FAQ (selected)

• What ultrasound training and procedural exercises does this model support and which devices are compatible? Core support for exploration and evaluation training of transesophageal echocardiography (TEE) and intracardiac echocardiography (ICE), including mitral and tricuspid valve repair simulations and electrophysiology catheterization. Compatible with ICE catheters, TEE probes and standard clinical instruments. Lesion customization available.
• What is the ultrasound imaging performance and which cardiac structures are visible? Under clinical ultrasound systems, the core displays structural details such as atrioventricular septal continuity, ventricular wall continuity, mitral and tricuspid leaflet position and mobility, and aortic/pulmonary leaflet number and movement, restoring clinical imaging for image recognition and analysis training.
• What about portability and operational flexibility? Four common clinical access routes are provided (femoral vein, heart apex, superior vena cava, esophagus); valves and the oval fossa allow repeated puncture; with a pulse pump valve opening/closing can be adjusted to simulate scenarios. Modular split design and dedicated air transport case enable secure transport and storage.

Technical specifications

• PN: PLXZXG016
• Commercial name: Ultrasound cardiac training model
• Brand: Preclinic Medtech
• Main materials: Specialized ultrasound‑visible gel; transparent food‑grade silica gel; silicone vessels
• Supported training: Transesophageal echocardiography (TEE), Intracardiac echocardiography (ICE), mitral/tricuspid repair practice, electrophysiology catheter training
• Compatibility: ICE catheters, TEE probes and standard clinical instruments
• Customizable lesions: ASD, VSD
• Access approaches: Femoral vein, heart apex, superior vena cava, esophagus
• Model dimensions: length 79 cm; width 45 cm; height 20 cm
• Lead time: 15 days
• Packaging / transport: Modular design with dedicated air transport case
• Origin: Shanghai, China
