Heart model PLXZXG004B

cardiacarteryvein

Overview

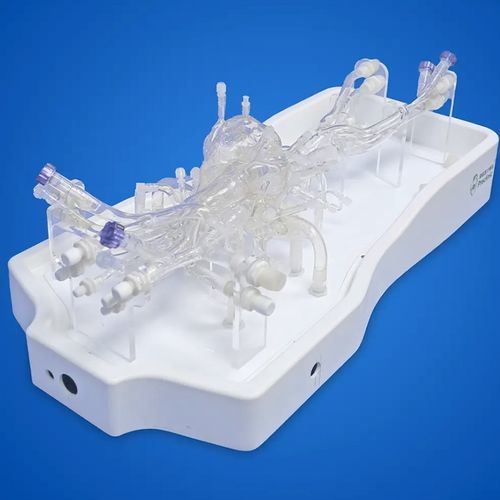

The model is based on Chinese clinical CT/MRI datasets and reproduces heart chambers, major vessels and valves at 1:1 scale. It includes thoracic and abdominal arteries, lower limb arteries and the systemic venous system. The phantom supports full-range interventional devices (guidewires, catheters, endovascular stents, four major artificial valves and pacemaker leads) and provides adjustable haemodynamic parameters (pressure, flow rate, temperature, pulsatility). The main body is made of food-grade, highly X‑ray‑transparent silicone suitable for DSA-guided training. Intended use: skills training, patient-specific preoperative rehearsal, valve and device performance testing in medical schools, hospital training centres and medical device companies.

Features

• Added training modules for biological and mechanical replacement of the four major valves (aortic, mitral, pulmonary, tricuspid) while maintaining compatibility with standard cardiovascular interventions (pacemaker implantation, radiofrequency ablation) and peripheral vascular procedures (TEVAR/EVAR, renal artery angioplasty).
• Supports a wide range of instruments including guidewires, catheters, endovascular stents and artificial valves — suitable for full‑scenario training from basic catheter handling to complex valve replacement.
• 1:1 anatomical restoration of valve, vessel and chamber geometry based on Chinese clinical data; manufactured in food‑grade silicone with high X‑ray transparency compatible with DSA systems.
• Modular design: replaceable standard modules (complete heart chambers, pulmonary arteries, aortic arch, iliac/femoral segments) and customizable lesion inserts (aneurysm, stenosis, foramen ovale/PFO).
• Multiple vascular access points (femoral arteries/veins, subclavian arteries/veins, carotid arteries/veins) aligned with clinical access practice; adjustable blood flow parameters (pressure, flow, temperature, frequency).

Specifications (table)
Features: Four‑valve biological/mechanical replacement training; compatible with cardiovascular and peripheral vascular interventions; supports guidewires, catheters, stents and artificial valves.
PN: PLXZXG004B
Main material: Highly transparent food‑grade soft silicone, hardness 30A, X‑ray transparent (transparency ≥ 90%)
Product size (approx.): Length 75 cm; Width 37 cm; Height 28 cm
Lead time: 15 days
Origin: Shanghai, China

Drawing
Main dimensions and illustrative product drawings are provided on the product page to support procedural planning and setup.

FAQ (selected)

• Q: What are the core differences from Type A and which valve replacement trainings are supported?
  A: Type B adds training modules for biological and mechanical replacement of all four major valves (aortic, mitral, pulmonary, tricuspid) while retaining the full interventional coverage of Type A, including simulation of implantation for the four major artificial valves.
• Q: Do valve sizes meet clinical standards and allow patient‑specific simulation?
  A: Valve dimensions are designed from Chinese clinical datasets and follow common clinical size specifications; complete chamber replacement and custom lesion modules allow patient‑specific rehearsal.
• Q: Is the model suitable for DSA imaging guided training?
  A: The main body is made of food‑grade silicone with high transparency (≥ 90%), non‑toxic and odorless, X‑ray transparent and fully compatible with DSA imaging guidance.

Technical specifications

• Model name: Cardiac Training Model — Type B
• PN: PLXZXG004B
• Main material: Highly transparent soft silicone (food‑grade), hardness 30A
• Supported procedures: Cardiovascular interventions, four‑valve biological/mechanical replacement (aortic, mitral, pulmonary, tricuspid), pacemaker implantation, radiofrequency ablation, peripheral vascular interventions (stent implantation, arterial dilation)
• Compatibility: Guidewires, catheters, endovascular stents, four major artificial valves, pacemakers; DSA imaging guidance compatible
• Customizable modules: Heart chambers, pulmonary arteries, aortic arch, iliac/femoral arteries; optional lesion inserts (aneurysm, stenosis, PFO)
• Access points: Femoral, subclavian, carotid arteries/veins
• Adjustable parameters: Blood pressure, flow rate, temperature, frequency
• Approx. product size: L 75 cm × W 37 cm × H 28 cm
• Lead time: 15 days
• Origin: Shanghai, China
