Product Overview

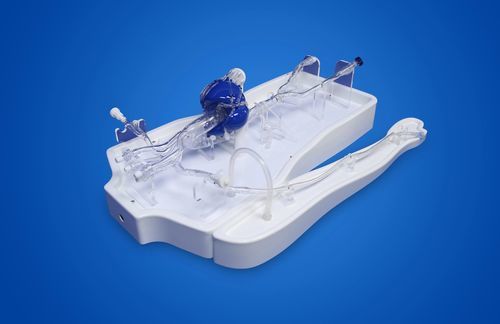

Designed from 1:1 clinical CT/MRI imaging data of patients, this Coronary Training Model - A reproduces human coronary vascular anatomy for interventional procedure training. The model is made of food-grade, highly transparent soft silicone (hardness 30A, transparency ≥90%) and supports modular replacement of diseased vessel segments. It enables repetitive hands-on practice of coronary intervention skills under realistic tactile and imaging conditions.

Features

• Compatible with standard interventional devices: guidewires, catheters, balloon catheters and intravascular stents.
• Supports simulation of common coronary procedures: coronary angiography, percutaneous transluminal coronary angioplasty (PTCA), percutaneous coronary stenting, and balloon angioplasty for vascular stenosis.
• Modular lesion replacement: interchangeable vascular modules (aorta, femoral artery, radial artery, coronary stenosis segments) to reproduce different lesion scenarios.
• X-ray transparent material: suitable for training under DSA/X-ray imaging to simulate clinical fluoroscopic guidance.

Specification (table)
Features: see Features list above
PN: PLXZXG003A
Main Material: Highly transparent soft silica gel (food grade), hardness 30A, transparency ≥90%
Product Size: Model length 75 cm; width 37 cm; height 28 cm
Lead Time: 15 days
Origin: Shanghai, China

Drawing
Drawing of Coronary Training Model - A (main dimensions image)
Drawing of Coronary Training Model - A (additional drawing image)

FAQ

• How to replace the diseased vascular segments of the training model? The model uses a modular main-vessel design. Remove the corresponding module and install the replacement diseased vessel segment (aorta, femoral, radial, straight/curved coronary stenosis) to change the lesion scenario quickly and repeatably.
• What vascular approaches does this model support for puncture training? The model provides common clinical vascular access points, including femoral artery, radial artery and subclavian artery, covering mainstream coronary intervention access scenarios.
• Differences in coronary artery models — Overview: Coronary Training Model - A supports configurations with a human-shaped shell base, acrylic shell base or illuminated base plate. Other types (B, C) differ by material and shell/pulse features as detailed in the product comparison.

Technical specifications

• Model name: Coronary Training Model - A (circular version)
• PN: PLXZXG003A
• Main material: Highly transparent soft silica gel (food grade), transparency ≥90%, hardness 30A
• Compatibility: Guidewires, catheters, balloon catheters, intravascular stents
• Supported procedures: Coronary angiography; PTCA; percutaneous coronary stenting; balloon angioplasty
• Design: Modular replaceable vascular modules (aorta, femoral artery, radial artery, coronary stenosis segments)
• Imaging compatibility: X-ray transparent; suitable for DSA/X-ray training
• Vascular access options: Femoral, radial, subclavian
• Dimensions: length 75 cm; width 37 cm; height 28 cm
• Lead time: 15 days
• Origin: Shanghai, China
