Heart vascular model PLXZXG006

iliac veinpulmonary arteryvena cava

Product Overview

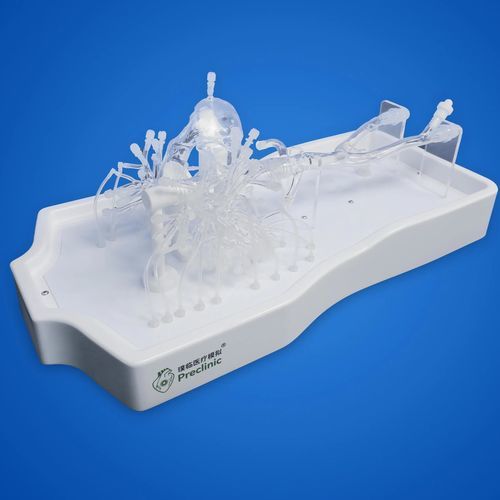

The model is reconstructed from representative Chinese clinical CT/MRI data and accurately reproduces the right atrium, pulmonary artery (including 4–5 branches), inferior vena cava, iliac vein, femoral vein and related anatomy at a 1:1 scale. The anatomical body is made of high-transparency food-grade silicone mounted on a transparent acrylic base to enable manipulation and visualization of interventional devices for the right heart and pulmonary artery (guide wires, catheters, vascular stents, coils, thrombectomy stents).

Key Capabilities

• Supports operation and testing of right heart/pulmonary artery interventional devices such as guide wires, catheters, vascular stents, spring coils and thrombectomy stents.
• High-transparency silicone (transparency ≥ 90%) allows clear observation of device movement inside vessels, enabling visualized procedural training.

Supported Training & Testing

• Core interventional training: pulmonary angiography, aneurysm procedures, thrombectomy and pulmonary artery stenosis interventions.
• Compatible with testing and operation of various instruments including guide wires, stents and coils.
• Customizable aneurysm models of different specifications available on request to meet special training scenarios.

Blood Flow Simulation (Optional)
Optional accessories such as pulse pump, temperature-controlled water tank and power supply (not included as standard) can be configured to simulate blood flow. The model inlet and outlet connect via tubing; temperature, pressure, flow rate and pulse parameters can be adjusted. Connection is simple: follow pipeline markings, inject pure water and lubricant, and check seals for leaks before use. A user manual provides detailed operating instructions.

Drawings & Dimensions
Main dimension drawings and additional model drawings are provided showing the anatomical layout and primary dimensions of the right cardiopulmonary model for training and setup reference.

Specifications / Technical data

• PN: PLXZXG006
• Main material: high-transparency soft silica gel (food-grade silicone), hardness: 30A, transparency ≥ 90%
• Model size (1:1): length 75 cm; width 37 cm; height 28 cm
• Supported instruments: guide wires, catheters, vascular stents, spring coils, thrombectomy stents
• Training scenarios: pulmonary angiography, aneurysm procedures, thrombectomy, pulmonary artery stenosis interventions
• Optional accessories for blood flow simulation: pulse pump, temperature-controlled water tank, power supply (not included)
• Lead time: 15 days
• Origin: Shanghai, China
