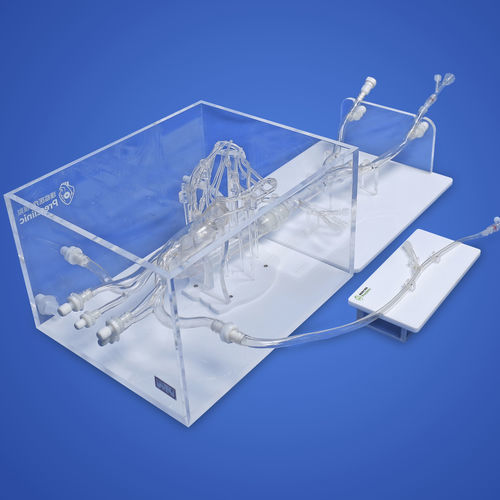

Heart vascular model PLXZXG003 C

arteryblood vesselscoronary arteries

Overview
1:1 anatomical reconstruction based on Chinese clinical CT/MRI data covering thoracic, abdominal and upper‑limb arteries, including core coronary vessels and branches. Supports manipulation of guidewires, catheters and stents and simulates coronary angiography and stent implantation. Equipped with a pulsatile pump and water bath to adjust flow, pressure and temperature for realistic procedure scenarios. Modular model body enables rapid replacement of lesion segments; material is X‑ray transparent for DSA imaging. Intended for skills training and device validation in medical schools, hospital training centers and medical device companies.

Key features

• 1:1 anatomical dimensions derived from clinical imaging; vessel hardness and elasticity mimic human tissue and, together with the pulsatile pump, reproduce realistic instrument feedback.
• Designed for core coronary intervention training; supports interchangeable lesion segments including straight and curved coronary stenoses to cover basic procedures through complex lesion management.
• Semi‑open structure facilitates injection and drainage simulation; modular vascular segments allow quick disassembly and replacement. Includes hemostatic valves and silicone tubing; ready for immediate training.

Supported procedures

• Coronary angiography
• Percutaneous transluminal coronary angioplasty (PTCA)
• Percutaneous coronary stent implantation
• Balloon angioplasty
• Balloon procedures for artificial vascular stenosis

Material and imaging compatibility
Made of food‑grade silicone (non‑toxic, odorless) with test certificates. X‑ray transparency ≥ 90%, fully compatible with DSA‑guided training. Optional simulated contrast agent available.

Replacement and modularity
Supports replacement of multiple lesion vessels (including straight/curved coronary stenosis segments, renal artery, iliac artery). Modular design enables rapid disassembly and replacement without special tools, allowing repeated training across different lesion scenarios.

Differences vs other coronary models
This model supports a human‑shaped shell base and features a rigid heart shell that only supports the coronary arteries; other variants differ by shell type (acrylic, lighted base) and heart material (rigid vs silicone with pulsatile cavity). Choose the variant according to training needs (shell support, number of branches, pulsatility).

Technical specifications

• PN: PLXZXG003C
• Main material: highly transparent soft silica gel / food‑grade silicone
• Material hardness: 30A
• Dimensions: length 75 cm; width 43 cm; height 21 cm
• DSA/X‑ray transparency: ≥ 90%
• Modular design: rapid replacement of diseased vascular segments without special tools
• Included accessories: hemostatic valves, silicone tubing; compatible with pulsatile pump and water bath to simulate adjustable blood flow parameters
• Lead time: 15 days
• Origin: Shanghai, China
