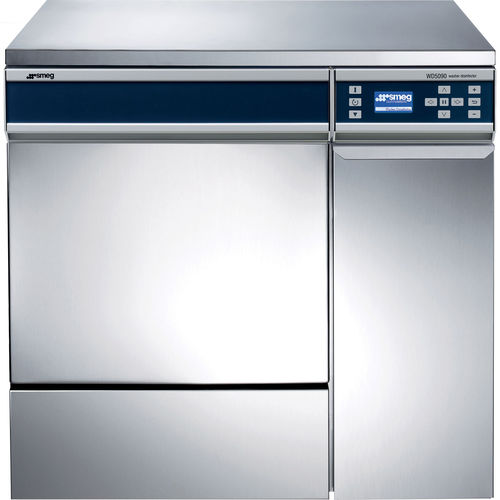

Undercounter washer-disinfector WD5090T
with hot air dryerfront-loadingwith steam generator

undercounter washer-disinfector
undercounter washer-disinfector
undercounter washer-disinfector
Add to favorites
Compare this product


Operational mode
with hot air dryer
with steam generator, with water softening dosing pump

316 l
(83.48 gal)


7 kW


850 mm
(33.5 in)


900 mm
(35.4 in)


630 mm
(24.8 in)


washing up to 95 °C - antibacterial thermal disinfection programs: 20 default + 10 custom n. 3 microprocessors programmable electronic control multi-language graphie display, 128 x 64 pixel serial port RS232 for connection to external printer or PC forced hot air drying system with absolute 99.999% HEPA filter high efficiency steam condenser Ecoslim. with cold water injection peristaltic pump for liquid detergent and level sensor peristaltic pump for liquid neutralizer and level sensor possibility of installing up to 3 additional peristaltic pumps washing chamber and internai door in AISI 316L stainless Steel external panels made of AISI 304 stainless Steel detergent cabinet made of AISI 304 stainless Steel, 2x5 liters tanks or 4 x 2 liters tanks Dacity upper level can holder basket internai working dimensions LxDxH: 525 x 490 x 570 mm incorporated water softener with sait sensor cold water, hot water and demineralized water connections electronic door lock system for user safety electrical connection: 3/N/PE 400 V - 50 Hz (switchable to single-phase 230 V) 60 Hz version available without trolleys 2 indipendentent washing levels through telescopic guides (cod. WD5090TR) Type Thermodisinfectors 90cm Programs Standard programs stores: 20 Modifiable programs: 10 (expandable to 50) Program editing: Yes Technical Features Drying System with HEPA filter: Yes Door: 1, balanced swing door in stainless steel DIN loading capacity: up to 8 RS232: Yes Undercounter installation: Yes Electrical Connection Electrical connection: 3N AC 400V - 50Hz Monophase conversion: Yes 60 Hz Possibility: Yes, on demand Manuals and Certifications Medical device declaration: Yes
