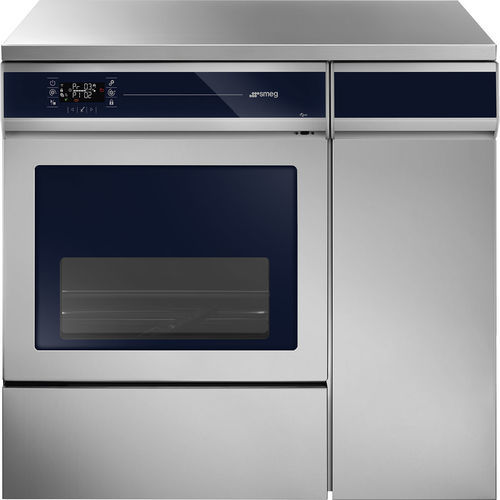

Washer-disinfector for the medical sector WD4290-SC-00G
for healthcare facilitiesreprocessinglaboratory

Washer-disinfector for the medical sector - WD4290-SC-00G - SMEG Instruments - for healthcare facilities / reprocessing / laboratory
Washer-disinfector for the medical sector - WD4290-SC-00G - SMEG Instruments - for healthcare facilities / reprocessing / laboratory
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for the medical sector, for healthcare facilities, reprocessing, laboratory, for instruments
Configuration
undercounter
Operational mode
with warm air dryer
Loading
front-loading
Options
with water softening dosing pump
Height

85 cm
(33.5 in)

Width

90 cm
(35.4 in)

Depth

60 cm
(23.6 in)

Description

Overview
  • Product: Washer-disinfector 90 cm (model WD4290-SC-00G)
  • Brand: Smeg
  • Medical device declaration: Yes


Intended use
  • Health care sector: Inpatient wards; Nursing homes; Hospital pharmacy; Analytical laboratories


Type
90 cm washer-disinfector

Technical features
  • Operating temperature: Up to 95 °C
  • Drying system: Forced hot air with absolute HEPA filter
  • Door: Stainless steel door with glass viewport
  • Wash chamber material: Stainless Steel AISI 316L
  • DIN load capacity: Up to 8
  • RS232: Optional
  • Under-counter installation: Yes


Programs
  • Stored standard programs: 20
  • Customizable programs: 20
  • Program modification: Yes


Electrical connection
  • Power supply: 3N AC 400V - 50Hz
  • Single-phase conversion: Yes
  • Single-phase version available: Yes, optional
  • 60 Hz option: Yes, on request
  • Plug: No


Manuals and certifications
  • Medical device declaration: Yes


Available versions
WD4290-SC-000 - version with steel door

Interface and connectivity
  • USB port: Yes
  • Cycle storage: Yes
  • Cycle archive download: Yes
  • Diagnostics: Remote, optional; via software application
  • LAN port for network connection: Optional


Construction
  • Tank with guides: Optional
  • Wash chamber material: Stainless Steel AISI 316L
  • External casing material: Stainless Steel AISI 304


Equipment
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Possibility to install additional peristaltic pumps: Yes, max. 2
  • Peristaltic pump for disinfectant dosing: Optional
  • Peristaltic pump for lubricant dosing: Optional
  • Chemical dosing control: Standard
  • Detergent cabinet: Yes, for 2 x 5 L or 4 x 2 L; up to 4 x 5 L with optional basket
  • Built-in water softener: Yes
  • Steam condenser: Yes


Logistics information
  • Product dimensions W x D x H (mm): 900x600x850


Additional information
Without trolleys

Medical device regulation
  • DMS reference: Version 02 - 26/06/2025


Characteristics / Technical specifications
  • Product type: 90 cm washer-disinfector
  • Model: WD4290-SC-00G
  • Brand: Smeg
  • Maximum temperature: up to 95 °C
  • DIN capacity: up to 8
  • Chamber material: Stainless Steel AISI 316L
  • External casing: Stainless Steel AISI 304
  • Drying system: Forced hot air with HEPA filter
  • Connectivity: USB, cycle storage and download, optional LAN
  • Power supply: 3N AC 400V - 50Hz (single-phase conversion available)
  • Dimensions (W x D x H): 900x600x850 mm
  • Main equipment: Peristaltic pumps for detergent and neutralizer dosing; built-in water softener; steam condenser
  • Medical device declaration: Yes
