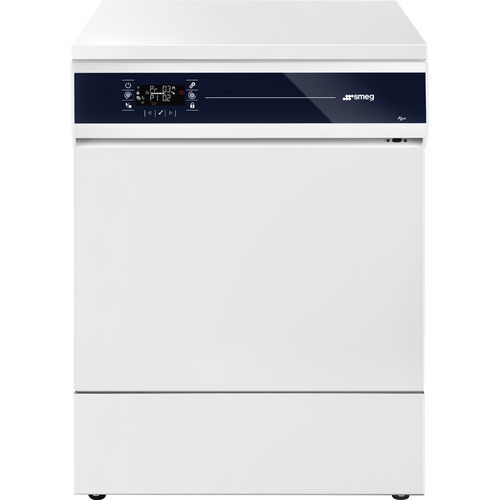

Washer-disinfector for the medical sector WD4260-DC-000
dentalfor dental instrumentsfor instruments

Washer-disinfector for the medical sector - WD4260-DC-000 - SMEG Instruments - dental / for dental instruments / for instruments
Washer-disinfector for the medical sector - WD4260-DC-000 - SMEG Instruments - dental / for dental instruments / for instruments
Washer-disinfector for the medical sector - WD4260-DC-000 - SMEG Instruments - dental / for dental instruments / for instruments - image - 2
Washer-disinfector for the medical sector - WD4260-DC-000 - SMEG Instruments - dental / for dental instruments / for instruments - image - 3
Washer-disinfector for the medical sector - WD4260-DC-000 - SMEG Instruments - dental / for dental instruments / for instruments - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for the medical sector, dental, for dental instruments, for instruments
Configuration
undercounter
Operational mode
with warm air dryer
Loading
front-loading
Options
with base, with manual closure, with water softening dosing pump
Height

85 cm
(33.5 in)

Width

60 cm
(23.6 in)

Depth

60 cm
(23.6 in)

Description

Product identification
Washer-disinfector 60 cm, code WD4260-DC-000

General features
  • Type: Washer-disinfector 60 cm
  • Door: 1, balanced steel swing door
  • Wash chamber material: AISI 316L stainless steel
  • DIN load capacity: up to 8
  • Medical device declaration: Yes

Technical specifications
  • Operating temperature: Up to 95 °C
  • Drying system: forced hot air with absolute HEPA filter
  • RS232: Optional
  • Under-counter installation: Yes

Programs
  • Stored standard programs: 20
  • Customizable programs: 20
  • Program modification: Yes

Electrical connection
  • Power supply: 3N AC 400V - 50Hz
  • Single-phase version available: Yes, optional
  • 60 Hz option: Yes, on request

Manuals and certifications
  • Medical device declaration: Yes

Interface and connectivity
  • USB port: Yes
  • Cycle archive storage: Yes
  • Cycle archive download: Yes
  • Diagnostics: Remote (with optional software application)
  • LAN port for network connection: Optional

Construction
  • Tub with guides: Yes
  • Wash chamber material: AISI 316L stainless steel
  • External casing material: AISI 304 stainless steel

Equipment
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Additional peristaltic pump installable: Yes, max. 1
  • Peristaltic pump for disinfectant dosing: Optional
  • Peristaltic pump for lubricant dosing: Optional
  • Chemical dosing control: Standard
  • Built-in water softener: Yes
  • Steam condenser: Yes

Logistics information
  • Dimensions (W×D×H) mm: 600 x 600 x 850

Additional information
  • Additional information: Lower and upper base trolleys included

Medical device regulation
  • DMS reference: Version 02 - 26/06/2025

Intended use
  • Dental Care sector: Washing room
  • Solutions: Dental/medical science

Optional / Available accessories
  • CS1-1: Positioning of supports and baskets
  • CS2: Universal washing solution for large materials or specific supports
  • ZCS1: Hoof washing functions, capacity 8, wash levels 1
  • ZCS2B: Hoof washing functions, capacity 20, wash levels 1
  • CPC1B: Containers, capacity 2, wash levels 1
  • D-SV: Dental instruments, wash levels 1
  • D-LCN2: Dental cannulas, capacity 24, wash levels 1
  • D-SM8EDS: Turbines and dental cannulas, capacity 12, wash levels 1
  • D-SM1260EDS: Turbines, capacity 12, wash levels 1

Characteristics / technical specifications
  • Type: Washer-disinfector 60 cm
  • Model / product code: WD4260-DC-000
  • Wash chamber material: AISI 316L stainless steel
  • External casing material: AISI 304 stainless steel
  • Door: 1 balanced steel swing door
  • DIN load capacity: up to 8
  • Operating temperature: up to 95 °C
  • Drying system: forced hot air with HEPA filter
  • Power supply: 3N AC 400V - 50Hz (single-phase optional, 60 Hz on request)
  • Interfaces: USB (yes), LAN (optional), RS232 (optional)
  • Programs: 20 stored standard, 20 customizable
  • Dimensions (W×D×H) mm: 600x600x850
  • Main equipment: peristaltic dosing pumps (detergent, neutralizer), built-in water softener, steam condenser
  • Medical device declaration: Yes
