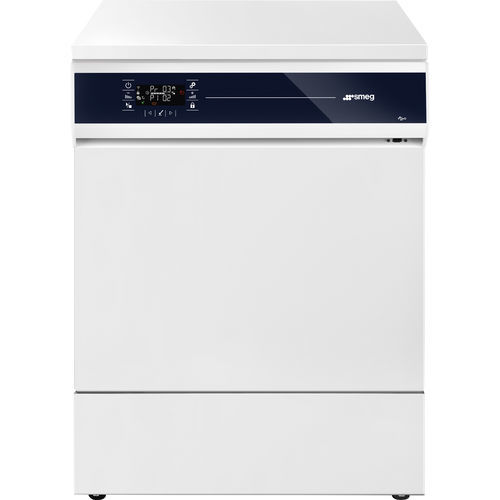

Dental instrument washer-disinfector WD1260-DC-000

for instrumentsdentalundercounter

Intended use
Dental care sector: instrument reprocessing/washroom

Type
Washer-disinfector 60 cm

Technical features
Operating temperature: Up to 95 °C
Door: 1, balanced hinged stainless steel door
Load capacity (DIN): Up to 8
RS232: Optional
Under-counter installation: Yes

Programs
Stored standard programs: 20
Modifiable programs: 20
Program editing: Yes

Electrical connection
Electrical connection: 3N AC 400V - 50Hz
Single-phase conversion: Yes (available)
60 Hz option: Yes, on request

Manuals and certifications
Medical device declaration: Yes

Interface
USB port: Yes
Cycle archiving: Yes
Cycle archive download: Optional via LAN; Yes via USB stick
Remote diagnostics: Optional via software application
LAN port for network connection: Optional

Construction
Tub with guides: Yes
Washing chamber material: AISI 316L stainless steel
External casing material: AISI 304 stainless steel

Equipment
Peristaltic pump for liquid detergent dosing: Yes
Peristaltic pump for liquid neutralizer dosing: Yes
Provision for additional peristaltic pump: Yes, max. 1
Peristaltic pump for disinfectant dosing: Optional
Peristaltic pump for lubricant dosing: Optional
Chemical dosing control: Standard
Built-in water softener: Yes
Steam condenser: Yes

Logistics information
Product dimensions LxDxH (mm): 600 x 600 x 850

Additional information
Included: lower and upper base trolleys

Medical device regulation
DMS reference: Version 02 - 26/06/2025

Optional / Accessories

• CSK4B - Washing functions: Surgical instruments; Capacity: 4 x CSKDIN; Washing levels: 2
• CS1-1 - Washing functions: Positioning of supports and baskets
• CS2 - Universal washing solution for large items or specific supports
• CSK8B - Washing functions: Surgical instruments; Capacity: 8 x CSKDIN; Washing levels: 4
• ZCS1 - Washing functions: Klompen (shoes/wooden blocks); Capacity: 8; Washing levels: 1
• ZCS2B - Washing functions: Klompen; Capacity: 20; Washing levels: 1
• CPC1B - Washing functions: Containers; Capacity: 2; Washing levels: 1
• D-SV - Washing functions: Dental instrument sets; Washing levels: 1
• D-LCN2 - Washing functions: Dental cannulae; Capacity: 24; Washing levels: 1

Technical specifications

• Name: Washer-disinfector 60 cm
• Model/SKU on page: WD1260-DC-000
• Type: Washer-disinfector 60 cm
• Door: 1, balanced hinged stainless steel
• Washing chamber material: AISI 316L stainless steel
• External casing material: AISI 304 stainless steel
• Load capacity (DIN): Up to 8
• Operating temperature: Up to 95 °C
• RS232: Optional
• Under-counter installable: Yes
• Stored standard programs: 20
• Modifiable programs: 20
• Cycle archiving: Yes
• USB port: Yes
• Cycle archive download: Optional (LAN) / Yes via USB stick
• Remote diagnostics: Optional via software
• Electrical connection: 3N AC 400V - 50Hz (single-phase conversion available)
• 60 Hz option: Yes, on request
• Peristaltic pumps: detergent and neutralizer standard; disinfectant/lubricant optional; 1 additional pump possible
• Chemical dosing control: Standard
• Built-in water softener: Yes
• Steam condenser: Yes
• Product dimensions (LxDxH mm): 600 x 600 x 850
• Optional accessories available: see accessories list
• Medical device declaration: Yes
• DMS reference: Version 02 - 26/06/2025
