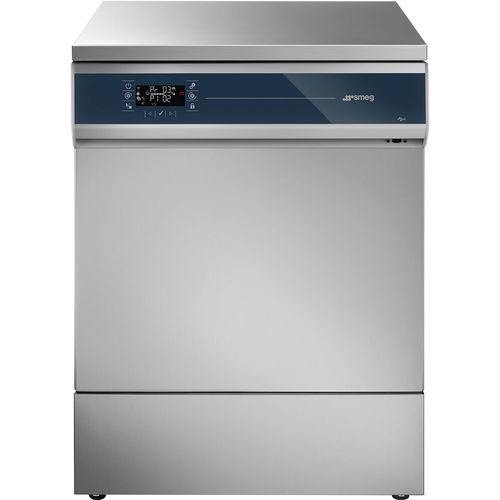

Healthcare facility washer-disinfector WD4260-SC-000
laboratoryfor the medical sectorundercounter

Healthcare facility washer-disinfector - WD4260-SC-000 - SMEG Instruments - laboratory / for the medical sector / undercounter
Healthcare facility washer-disinfector - WD4260-SC-000 - SMEG Instruments - laboratory / for the medical sector / undercounter
Healthcare facility washer-disinfector - WD4260-SC-000 - SMEG Instruments - laboratory / for the medical sector / undercounter - image - 2
Healthcare facility washer-disinfector - WD4260-SC-000 - SMEG Instruments - laboratory / for the medical sector / undercounter - image - 3
Healthcare facility washer-disinfector - WD4260-SC-000 - SMEG Instruments - laboratory / for the medical sector / undercounter - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for healthcare facilities, laboratory, for the medical sector
Configuration
undercounter
Operational mode
with warm air dryer
Loading
front-loading
Options
with water softening dosing pump
Height

85 cm
(33.5 in)

Width

60 cm
(23.6 in)

Depth

60 cm
(23.6 in)

Description

Short description
  • Type: 60 cm washer-disinfector
  • Door: 1, balanced steel hinged door
  • Washing chamber material: AISI 316L stainless steel
  • DIN load capacity: up to 8
  • Medical device declaration: Yes


Intended use
  • Health care sector: inpatient ward
  • Nursing homes
  • Hospital pharmacy
  • Analytical laboratory


Technical features
  • Operating temperature: Up to 95 °C
  • Drying system: forced hot air with absolute HEPA filter: Yes
  • RS232: Optional
  • Installable under worktop: Yes


Programs
  • Stored standard programs: 20
  • Modifiable programs: 20
  • Ability to modify programs: Yes


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Single-phase version available: Yes, optional
  • 60 Hz availability: Yes, on request


Manuals and certifications
  • Medical device declaration: Yes
  • DMS reference: Version 02 - 26/06/2025


Interface
  • USB port: Yes
  • Cycle storage: Yes
  • Cycle archive download: Yes
  • Diagnostics: Remote, with optional software application
  • LAN port for network connection: Optional


Construction
  • Tank with guides: Optional
  • Washing chamber material: AISI 316L stainless steel
  • External casing material: AISI 304 stainless steel


Equipment
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Possibility to install additional peristaltic pump: Yes, max. 1
  • Peristaltic pump for disinfectant dosing: Optional
  • Peristaltic pump for lubricant dosing: Optional
  • Chemical dosing control: Standard
  • Built-in water softener: Yes
  • Steam condenser: Yes


Logistic information
  • Product dimensions LxDxH (mm): 600x600x850
  • Additional information: Without trolleys


Optional
  • Available accessories: CSK4B, CS1-1, CSK4BMIC, CS2, CSK8B, ZCS1, ZCS2B, ZCS3B, AE2BDS, EF5DS, CPC1B, CPCENDO, KITMIC10 (see accessories sheet for specific functions)


Characteristics / technical specifications
  • Type: 60 cm washer-disinfector
  • Operating temperature: Up to 95 °C
  • DIN load capacity: up to 8
  • Door: 1, balanced steel hinged door
  • Washing chamber material: AISI 316L stainless steel
  • External casing material: AISI 304 stainless steel
  • Drying system: forced hot air with absolute HEPA filter
  • Interfaces: USB (Yes), cycle storage (Yes), cycle archive download (Yes), LAN (Optional), remote diagnostics (with optional)
  • Electrical connection: 3N AC 400V - 50Hz (single-phase optional; 60Hz on request)
  • Equipment: peristaltic pumps for detergent/neutralizer dosing (included), possibility of additional pump, built-in water softener, steam condenser
  • Dimensions: 600x600x850 mm
  • Compliance: Medical device declaration present (DMS reference: Version 02 - 26/06/2025)
