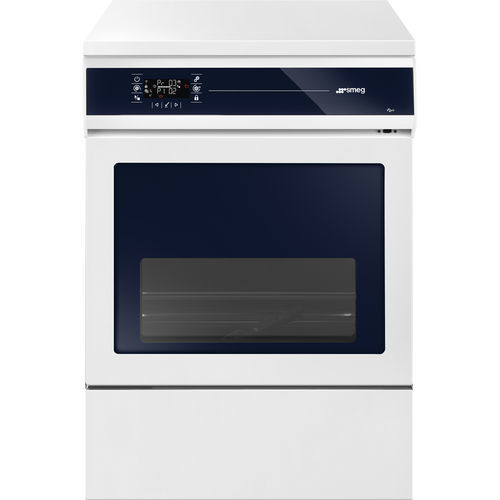

Reprocessing washer-disinfector WD4260-DC-00G
for instrumentsfor the medical sectorundercounter

Reprocessing washer-disinfector - WD4260-DC-00G - SMEG Instruments - for instruments / for the medical sector / undercounter
Reprocessing washer-disinfector - WD4260-DC-00G - SMEG Instruments - for instruments / for the medical sector / undercounter
Reprocessing washer-disinfector - WD4260-DC-00G - SMEG Instruments - for instruments / for the medical sector / undercounter - image - 2
Reprocessing washer-disinfector - WD4260-DC-00G - SMEG Instruments - for instruments / for the medical sector / undercounter - image - 3
Reprocessing washer-disinfector - WD4260-DC-00G - SMEG Instruments - for instruments / for the medical sector / undercounter - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
reprocessing, for instruments, for the medical sector
Configuration
undercounter
Operational mode
with warm air dryer
Loading
front-loading
Options
with water softening dosing pump, with base
Height

85 cm
(33.5 in)

Width

60 cm
(23.6 in)

Depth

60 cm
(23.6 in)

Description

Main information
  • Type: 60 cm thermal disinfector
  • Door: Stainless steel door with glass window
  • Wash chamber material: AISI 316L stainless steel
  • Load capacity (DIN): up to 8
  • Medical device declaration: Yes


Technical features
  • Operating temperature: Up to 95 °C
  • Forced hot air drying with HEPA absolute filter: Yes
  • Door: Stainless steel door with glass window
  • Load capacity (DIN): up to 8
  • RS232: Optional
  • Undercounter installation: Yes


Programs
  • Stored standard programs: 20
  • Customizable programs: 20
  • Program modification: Yes


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Single-phase version available: Yes, optional
  • 60 Hz availability: Yes, on request


Manuals and certifications
  • Medical device declaration: Yes


Available versions
  • WD4260-DC-000 - version with stainless steel door


Interface
  • USB port: Yes
  • Cycle archiving: Yes
  • Cycle archive download: Yes
  • Diagnostics: Remote, with optional software application
  • LAN port for network connection: Optional


Construction
  • Tank with guides: Yes
  • Wash chamber material: AISI 316L stainless steel
  • Exterior cladding material: AISI 304 stainless steel


Equipment
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Option to install additional peristaltic pump: Yes, max. 1
  • Peristaltic pump for disinfectant dosing: Optional
  • Peristaltic pump for lubricant dosing: Optional
  • Chemical dosing control: Standard
  • Built-in water softener: Yes
  • Steam condenser: Yes


Logistic information
  • Product dimensions LxDxH (mm): 600x600x850


Additional information
  • Further information: Lower and upper base trolleys included


Medical device regulation
  • DMS reference: Version 02 - 26/06/2025


Features / technical specifications
  • Type: 60 cm thermal disinfector
  • Maximum operating temperature: up to 95 °C
  • Load capacity (DIN): up to 8
  • Chamber material: AISI 316L stainless steel
  • External cladding: AISI 304 stainless steel
  • Drying system: forced hot air with HEPA filter
  • Interfaces: USB (standard), LAN (optional), RS232 (optional)
  • Standard power supply: 3N AC 400V - 50Hz (single-phase optional; 60 Hz on request)
  • Dimensions (LxDxH): 600x600x850 mm
  • Accessories/optionals available: various baskets and washing supports (e.g. CS1-1, CS2, ZCS1, ZCS2B, etc.)
