Healthcare facility washer-disinfector WD1245-DC-100

laboratorydentalfor dental instruments

Product

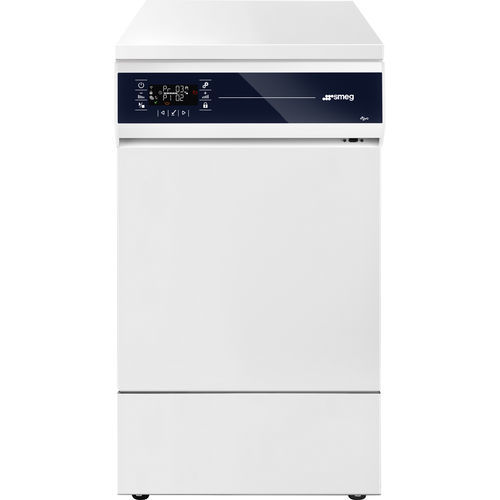

Smeg Instruments - Thermodisinfector WD1245-DC-100, 45 cm. Undercounter installation possible. Lower and upper baskets included.

Overview
Thermodisinfector 45 cm designed for dental and healthcare environments. Medical device declaration: Yes. Stainless-steel chamber and balanced swing door ensure compatibility with clinical reprocessing workflows.

Applications

• Dental care: washing room
• Healthcare: hospital wards, nursing homes, hospital pharmacy, analysis laboratory
• Instrument processing: health science and dental/medical science settings

Type
Thermodisinfector 45 cm

Technical features

• Working temperature: up to 95 °C
• Door: 1 balanced swing door in stainless steel
• Chamber material: Stainless steel AISI 316L
• External material: Stainless steel AISI 304
• DIN loading capacity: up to 2
• Undercounter installation: Yes
• Dimensions (WxDxH mm): 450x620x850

Programs

• Standard stored programs: 20
• Modifiable programs: 20
• Program editing: Yes

Interface and traceability

• USB port: Yes (cycle archive and download)
• Cycle archive: Yes
• Download cycle: Yes, through USB port
• RS232: Optional
• LAN connection: Optional
• Remote diagnosis: Optional, with software

Electrical connection

• Electrical connection: 1N AC 230V - 50Hz
• 60 Hz possibility: Yes, on demand

Equipment

• Peristaltic pumps for liquid detergent and neutralizer dosing: Yes
• Chemicals dosing: Standard
• Built-in water softener: Yes
• Steam condenser: Yes

Manuals and certifications

• Medical device declaration: Yes
• DMS Reference: Version 03 - 26/6/2025

Additional information

• Lower and upper baskets included

Technical specifications

• Product family: Washer disinfectors
• Model / Code: WD1245-DC-100
• Type: Thermodisinfector 45 cm
• Working temperature: up to 95 °C
• Door: 1 balanced swing door (stainless steel)
• Chamber material: Stainless steel AISI 316L
• External material: Stainless steel AISI 304
• DIN loading capacity: up to 2
• Programs: 20 standard + 20 modifiable
• USB port: Yes (cycle download and archive)
• RS232: Optional
• LAN connection: Optional
• Electrical connection: 1N AC 230V - 50Hz (60Hz on demand)
• Peristaltic pumps for detergent and neutralizer: Yes
• Built-in water softener: Yes
• Steam condenser: Yes
• Undercounter installation: Yes
• Dimensions (WxDxH mm): 450x620x850
• Included accessories: Lower and upper baskets
