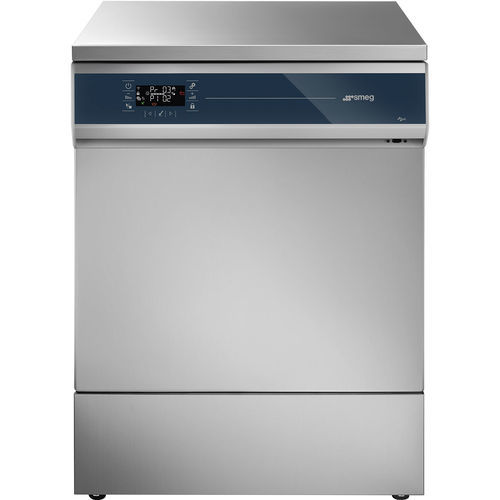

Healthcare facility washer-disinfector WD1260-SC-000

reprocessingfor instrumentsfor the medical sector

Overview
The MDR-certified washer-disinfector WD1260-SC-000 is designed for healthcare environments to clean, rinse and perform thermal disinfection of reusable invasive and non-invasive medical devices. The unit combines a 60 cm width for standard DIN loading with a stainless-steel chamber and a user interface offering multiple programmable cycles.

Highlights

• Intuitive user interface: control panel with 20 pre-set programmes and 20 customisable programmes showing progressive cycle status.
• Flexible load capacity: 60 cm width, up to 8 DIN loading positions for trays and instrument containers.
• Traceability and data export: USB port for cycle archive download; LAN and RS232 available as options for networked data transfer.

Features & Functions

• Product type: Thermodisinfector (60 cm).
• Door: 1 balanced swing door in stainless steel.
• Washer chamber material: Stainless steel AISI 316L.
• External material: Stainless steel AISI 304.
• DIN loading capacity: up to 8.
• Medical device declaration: Yes (MDR-certified).
• Programs: 20 standard programmes stored; 20 modifiable programmes; program editing supported.
• Interface and data: USB port for data download; cycle archive available; LAN connection optional; RS232 optional; remote diagnosis optional via software.
• Chemicals and dosing: peristaltic pump for liquid detergent (standard); neutralizing peristaltic pump (standard); one additional peristaltic pump installable; peristaltic pumps for disinfectant or lubricant optional; chemicals dosing standard; built-in water softener and steam condenser included.
• Electrical connection: 3N AC 400V - 50Hz (single-phase conversion available; 60 Hz on request).
• Installation: Undercounter installation option available.
• Additional information: Does not include trolleys.

Logistic information

• Dimensions (W×D×H mm): 600 × 600 × 850

Regulatory / Documentation

• Medical devices normative: DMS Reference Version 02 - 26/6/2025
• Medical device declaration: Yes

Technical specifications

• Maximum working temperature: up to 95 °C
• Chamber rails: optional
• USB port: Yes (data download)
• Cycle archive: Yes
• Download cycle: via USB; LAN optional
• RS232: Optional
• Diagnosis: Remote control optional with software
• Peristaltic pumps: detergent (Yes), neutralizer (Yes), additional up to 1 (Yes), disinfectant (Optional), lubricant (Optional)
• Chemicals dosing: Standard
• Built-in water softener: Yes
• Steam condenser: Yes
• Electrical: 3N AC 400V - 50Hz (monophase conversion available)
• 60 Hz possibility: Yes, on demand
• Dimensions (W×D×H mm): 600 × 600 × 850
• Additional information: Does not include trolleys
• DMS Reference: Version 02 - 26/6/2025
