Healthcare facility washer-disinfector WD4290-SC-000
laboratoryfor the pharmaceutical industryundercounter

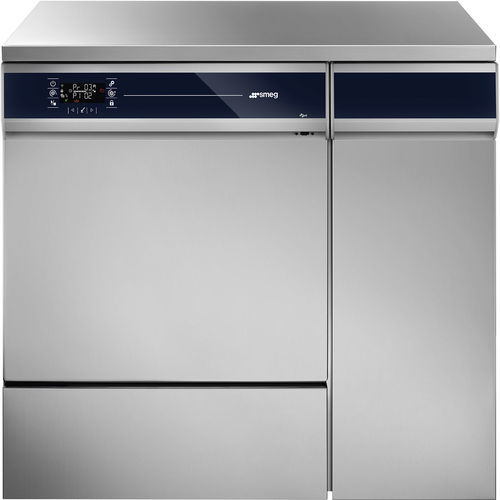

Healthcare facility washer-disinfector - WD4290-SC-000 - SMEG Instruments - laboratory / for the pharmaceutical industry / undercounter
Healthcare facility washer-disinfector - WD4290-SC-000 - SMEG Instruments - laboratory / for the pharmaceutical industry / undercounter
Healthcare facility washer-disinfector - WD4290-SC-000 - SMEG Instruments - laboratory / for the pharmaceutical industry / undercounter - image - 2
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for healthcare facilities, laboratory, for the pharmaceutical industry
Configuration
undercounter
Operational mode
with warm air dryer
Loading
front-loading
Height

85 cm
(33.5 in)

Width

90 cm
(35.4 in)

Depth

60 cm
(23.6 in)

Description

Intended use
  • Health care sector: Inpatient ward
  • Care homes
  • Hospital pharmacy
  • Analytical laboratory


Type
Washer-disinfector 90 cm

Technical features
  • Operating temperature: Up to 95 °C
  • Drying system: Forced hot air with absolute HEPA filter: Yes
  • Door: 1 hinged balanced steel door
  • DIN rack capacity: up to 8
  • RS232: Optional
  • Under-worktop installation: Yes


Programs
  • Stored standard programs: 20
  • Modifiable programs: 20
  • User program modification: Yes


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Conversion to single-phase: Yes
  • Single-phase version availability: Yes, optional
  • 60 Hz possibility: Yes, on request
  • Plug: No


Manuals and certifications
  • Medical device declaration: Yes


Interface
  • USB port: Yes
  • Cycle storage: Yes
  • Cycle archive download: Yes
  • Diagnostics: Remote, optional via software application
  • LAN port for network connection: Optional


Construction
  • Tub with guides: Optional
  • Washing chamber material: AISI 316L stainless steel
  • External casing material: AISI 304 stainless steel


Equipment
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Possibility to install additional peristaltic pumps: Yes, max. 2
  • Peristaltic pump for disinfectant dosing: Optional
  • Peristaltic pump for lubricant dosing: Optional
  • Chemical dosing control: Standard
  • Detergent cabinet: Yes, for 2 x 5 L or 4 x 2 L; up to 4 x 5 L with optional basket
  • Built-in water softener: Yes
  • Vapor condenser: Yes


Logistics information
  • Product dimensions LxDxH (mm): 900 x 600 x 850


Additional information
Further information: Without trolleys

Medical device regulation
  • DMS reference: Version 02 - 26/06/2025


Main options and accessories
  • Numerous optional accessories and loading solutions (e.g. CSK4B, CS1-1, CSK4BMIC, CS2, CSK8B, ZCS1, ZCS2B, ZCS3B, AE2BDS, EF5DS, CPC1B, CPCENDO, KITMIC10)


Specifications / Technical data
  • Product name: Washer-disinfector WD4290-SC-000
  • Type: Washer-disinfector
  • Door: 1 hinged balanced stainless steel door
  • Washing chamber material: AISI 316L stainless steel
  • External casing material: AISI 304 stainless steel
  • DIN rack capacity: up to 8
  • Operating temperature: Up to 95 °C
  • Drying system: Forced hot air with absolute HEPA filter
  • Programs: 20 stored standard, 20 modifiable (user-modifiable)
  • Interfaces: USB port, cycle storage, cycle archive download; remote diagnostics with optional software; optional LAN port
  • Electrical connection: 3N AC 400V - 50Hz (single-phase conversion available as option)
  • 60 Hz frequency: available on request
  • Plug: No
  • Pumps and dosing: Peristaltic pumps for detergent and neutralizer included; possibility for additional pumps (max. 2); disinfectant/lubricant pumps optional; chemical dosing control standard
  • Built-in water softener: Yes
  • Vapor condenser: Yes
  • Under-worktop installable: Yes
  • Tub with guides: Optional
  • Dimensions (LxDxH mm): 900 x 600 x 850
  • Additional information: Without trolleys
  • Medical device declaration: Yes
  • Documentation reference: DMS Version 02 - 26/06/2025
