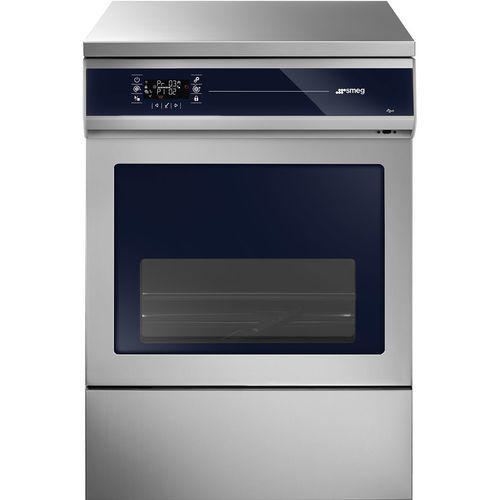

Healthcare facility washer-disinfector WD4260-SC-00G

laboratoryfor life sciences applicationsfor instruments

Intended use

• Healthcare sector: inpatient wards, nursing homes, hospital pharmacy, clinical laboratory
• Instrument solutions: Health Science

Type
Thermal disinfector 60 cm

Technical features

• Operating temperature: up to 95 °C
• Drying system: forced hot air with absolute HEPA filter
• Door: stainless steel door with glass viewport
• DIN load capacity: up to 8
• RS232: optional
• Under-counter installation: yes

Programs

• Stored standard programs: 20
• Modifiable programs: 20
• Ability to modify programs: yes

Electrical connection

• Standard electrical connection: 3N AC 400V - 50Hz
• Single-phase version available: yes, optional
• 60 Hz option: yes, on request

Manuals and certifications

• Medical device declaration: yes
• DMS reference: Version 02 - 26/06/2025

Available versions

• WD4260-SC-000 - version with stainless steel door

Interface and connectivity

• USB port: yes
• Cycle archive storage: yes
• Cycle archive download: yes
• Diagnostics: remote via optional software application
• LAN port for network connection: optional

Construction

• Tank with guides: optional
• Washing chamber material: AISI 316L stainless steel
• External casing material: AISI 304 stainless steel

Equipment

• Peristaltic pump for liquid detergent dosing: yes
• Peristaltic pump for liquid neutralizer dosing: yes
• Possibility to install additional peristaltic pump: yes, max. 1
• Peristaltic pump for disinfectant dosing: optional
• Peristaltic pump for lubricant dosing: optional
• Chemical dosing control: standard
• Built-in water softener: yes
• Steam condenser: yes

Logistics information
Product dimensions LxDxH (mm): 600x600x850

Additional information
Without trolleys

Medical device regulation
DMS reference: Version 02 - 26/06/2025

Characteristics / Technical specifications

• Model: WD4260-SC-00G
• Type: Thermal disinfector 60 cm
• Maximum temperature: up to 95 °C
• DIN capacity: up to 8
• Chamber: AISI 316L stainless steel
• External casing: AISI 304 stainless steel
• Drying: forced hot air with HEPA filter
• Power supply standard: 3N AC 400V - 50Hz (single-phase optional; 60Hz on request)
• Interfaces: USB; optional LAN; optional RS232
• Programs: 20 stored, 20 modifiable
• Chemical equipment: peristaltic pumps for detergent and neutralizer (disinfectant/lubricant optional)
• Accessories/optionals available for multiple load types and baskets
