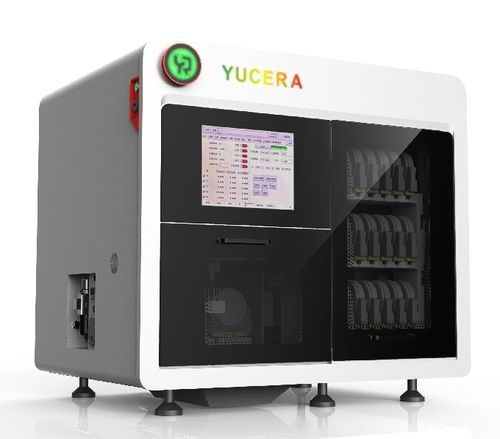

CAD/CAM milling machine YRC-9PRO

dentalfor dental laboratoriesfor dental prostheses

Product overview
YRC-9PRO Multi-Disc 5+4-Axis dental milling machine designed for fully automated 24/7 unmanned production. Equipped with an 18-disc automatic changer, 12-tool magazine and smart control functions to enable high-throughput, micron-level precision milling across multiple dental materials.

Key features

• 18-disc automatic changer — high-capacity loading; material switch time ≤ 40 seconds
• 12-tool magazine with built-in AI tool-wear prediction and automatic switch to backup tools (reduces downtime ≈ 80%)
• Smart remote monitoring — fully automated workflow from loading to milling and monitoring
• 24/7 continuous operation — daily productivity increase ≈ 200%; 1 unit ≈ 3 conventional milling machines

Materials

• Zirconia
• Wax
• PMMA
• PEEK
• Composite materials

Indications

• Veneer
• Crown
• Bridge
• Inlay
• Onlay
• Implant abutment

Processing modes / Innovations

• Integrated precision-cast aluminum body — improved dynamic rigidity (~+200%) for stable continuous milling
• Multi-disc dynamic balancing technology with high-precision sensors and adaptive algorithms
• Vibration amplitude ≤ 0.005 mm — maintains accuracy over extended continuous milling (up to 96 hours)
• Gantry-style 5-axis system — 5+4-axis simultaneous control for ultra-stable operation
• Breakpoint recovery — automatic resume after unexpected interruptions (power loss, collisions) to avoid scrap
• Upgraded servo drive system with imported chips and mechanical encoders for auto-calibration and plug-and-play operation

Dimensions & Weight
Dimensions (W×D×H): 932 × 730 × 855 mm (with open flap and drawer)
Weight: 260 kg

Specifications

• Model: YRC-9PRO
• Axes: 5+4 (simultaneous control)
• Disc capacity: 18 discs
• Tool magazine: 12 tools
• Material switch time: ≤ 40 seconds
• Accuracy: margin control ±0.05 mm
• Material loss rate: ≤ 2%
• Vibration amplitude: ≤ 0.005 mm
• Continuous operation: 24/7; daily productivity ≈ +200%
• Equivalent productivity: 1 unit ≈ 3 conventional milling machines
• Supported materials: Zirconia, PMMA, PEEK, Wax, Composite
• Additional features: AI tool-wear prediction; automatic switch to backup tools; breakpoint recovery; gantry-style 5-axis; upgraded servo drive with auto-calibration
• Dimensions (W×D×H): 932 × 730 × 855 mm
• Weight: 260 kg
