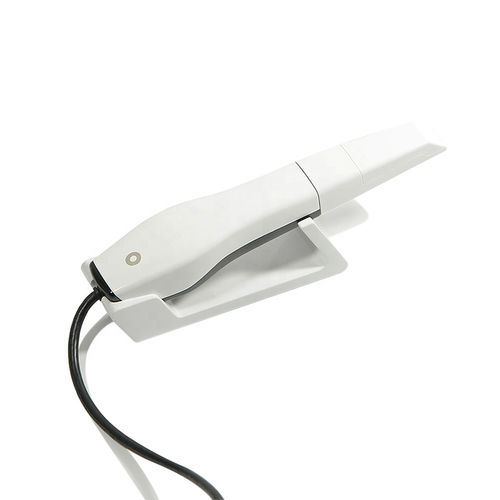

3D dental scanner YRC-S02

for dental laboratoriesfor dental clinicsfor orthodontics

Overview
Compact intraoral dental scanner for clinical and laboratory use. Designed for fast full-arch capture and precise digital impressions to support restorative, prosthetic and orthodontic workflows.

Key specifications

• Accuracy: 5 μm
• Full scan time: 1–2 min
• Single scan range: 18–16 mm
• Depth of field: 20 mm
• Interface: USB 3.0

Features

• Simple operation: One-button workflow for rapid capture and minimal learning curve.
• Fast, accurate scanning: Clear margin acquisition and high frame-rate video scanning reduce chair time.
• Clinical versatility: Interchangeable scanning heads for diverse indications and patient anatomies.

Technical data

• Scanning technology: Video scanning
• Housing: Handheld device, aviation aluminium alloy
• Dimensions & weight: 216 x 40 x 36 mm; 228 g
• Power: 100–240 V, 50–60 Hz
• Storage temperature: -10 °C to 55 °C
• Approvals: CE, VDE (all models); UL, FCC (North America model)

How it works
Real-time video capture produces a continuous 3D model. Export compatible STL/PLY outputs integrate with CAD/CAM systems and dental laboratories. Demonstration video available to illustrate clinical workflow and laboratory integration.

Technical specifications

• Model: YRC-S02
• Accuracy: 5 μm
• Full scan time: 1–2 min
• Single scan range: 18–16 mm
• Depth of field: 20 mm
• Scanning technology: Video scanning
• Fields of application: Intraoral scan
• Handheld housing material: Aviation aluminium alloy
• Port: USB 3.0
• Storage temperature: -10 °C to 55 °C
• Power supply: 100–240 V, 50–60 Hz
• Dimensions (W/D/H): 216 x 40 x 36 mm
• Weight: 228 g
• Certifications: CE, VDE; UL, FCC (North America)
