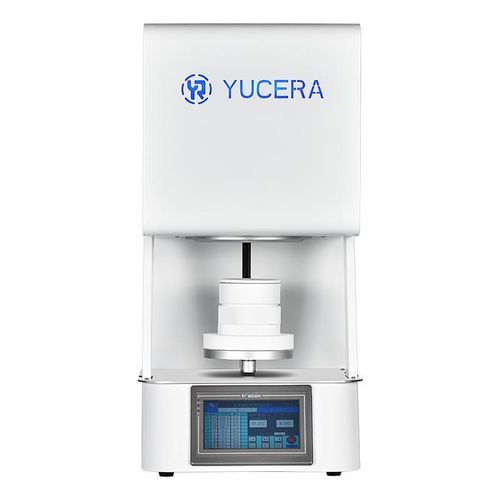

Sintering oven YRC-F10+

dentalfor dental laboratoriesfor dental clinics

Overview
Sintering of single crowns on anterior teeth in as little as 90 minutes; polished restorations deliverable in approximately 2 hours. Designed for dental laboratories and clinic-based production workflows requiring fast and repeatable sintering cycles.

Features

• Fast and slow sintering Integrated fast and slow sintering modes to support both rapid cycles and conventional profiles.
• Touch screen control panel 7" true-color touchscreen with graphical interface for recipe selection and process monitoring.
• Uniform sintering Even heating distribution and controlled automatic cooling to ensure consistent densification and shade stability.

Technical Data
Dimensions & weights
Dimensions: 370(L) × 530(W) × 780(H) mm
Chamber size: Ø110 × 130 mm
Weight: 50 kg

Environmental & performance
Temperature control accuracy: ±1 °C
Maximum operating temperature: up to 1560 °C (working range commonly reported to 1550 °C)

Base system

• Touch screen size: 7" true color
• Number of programs: 24 programmable profiles
• Heating elements: 4 × 1850 high-purity silicon-molybdenum rods
• Sensor type: S-shape double platinum-rhodium sensor
• Rated power: ≤ 2 kW

Scope of delivery

• YRC-F10+ sintering furnace
• Zirconia slow-burning crucible (2 pieces)
• Special fast-burning crucible
• Crucible tongs
• Sintered beads / accessories
• Power cable and basic documentation

How it works
Operation, sintering cycles and mode demonstration are shown in the product video "New Product Release — Yucera F10+ dental sintering furnace" which illustrates fast/slow modes, program selection and touchscreen operation.

Characteristics / Technical specifications

• Model: YRC-F10+
• Application: Dental crown sintering for anterior restorations
• Sintering time: ~90 minutes for single crowns (fast cycles)
• Dimensions (L×W×H): 370 × 530 × 780 mm
• Chamber size: Ø110 × 130 mm
• Weight: 50 kg
• Maximum temperature: up to 1560 °C
• Temperature control accuracy: ±1 °C
• Rated power: ≤ 2 kW
• Touch screen: 7" true-color display
• Stored programs: 24
• Heating elements: 4 × 1850 Si-Mo rods
• Sensor: S-shape double Pt-Rh sensor
