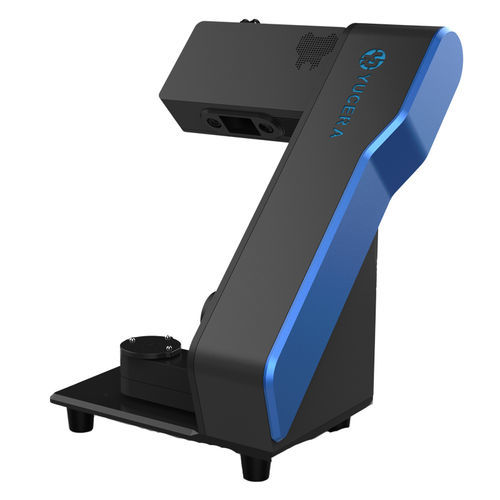

3D dental scanner YRC-RS300

for dental laboratoriesfor dental clinicsfor dental prostheses

Product overview
The Yucera RS300 is a dental lab scanner engineered for professional dental laboratories and clinics. It delivers high‑precision, fast capture and an open data workflow to integrate with CAD/CAM systems and production chains.

Key parameters

• Accuracy: ≤ 10 μm
• Occlusal (bite) scan time: 5 s
• Full‑arch scan time: 20 s
• Double‑sided impression scan time: 70 s
• Scan area: 150 × 100 × 90 mm
• Camera: 2 × 3.0 MP
• Data formats: STL, PLY
• Interface: USB 3.0

Features

• Flexible scanning workflow: Optimised steps for segmented and non‑segmented models to reduce handling and improve throughput.
• High precision capture: Consistent accuracy ≤ 10 μm suitable for dental restorations and implant workflows.
• Open system: Exports STL/PLY for direct use in common CAD/CAM suites (e.g. EXOCAD).

Applications

• Abutments
• Scan bodies
• Articulator setups
• Veneers
• Non‑separated models
• All‑in‑one prosthetic workflows
• Impressions

Technical data (summary)

• Scan principle: Contactless blue‑light scanning (YRC‑RS300)
• Scan area (W×D×H): 150 × 100 × 90 mm
• Camera resolution: 2 × 3.0 MP
• Accuracy: ≤ 10 μm
• Ports: USB 3.0
• Compatible software: EXOCAD and other CAD/CAM platforms
• Certifications: CE, VDE (all models); UL, FCC (North America models)
• Dimensions (W×D×H): 530 × 650 × 750 mm
• Weight: 9 kg

Scope of delivery & accessories

• YRC‑RS300 scanner
• USB cable and power cable
• Marble calibration board
• Heel block, 12‑hole dies plate, scan plate
• Blu‑tack, fixed plate, impression fixture, 3‑hole die disc

How it works
The product page features an embedded demonstration video showing typical scanning workflows, segmented‑model handling and export to CAD software.
