3D printing curing unit UW-01

UV

Product overview

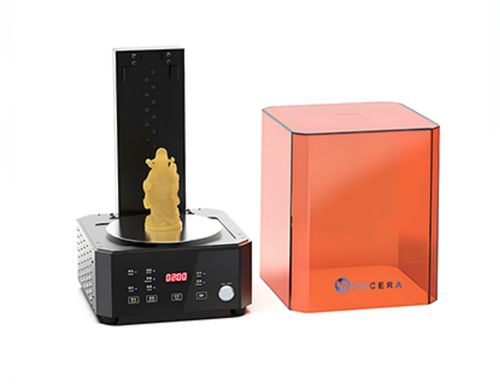

The UW-01 is an integrated washing and curing machine for post-processing 3D printed parts. It performs both cleaning and UV curing in a single unit with selectable time from 2 to 90 minutes and three speed settings to accommodate different materials and part sizes. Suited to small production runs and routine post-processing workflows.

Key features

• Dual-function unit: solvent cleaning and UV curing in one machine to streamline post-processing.
• Flexible cleaning options: clean parts individually in the basket or assemble base plates for batch cleaning.
• Three speed settings and 2–90 min timer: adjustable speed and duration to match material and surface finish requirements.
• LED touch controls: high-definition touch buttons and LED display for precise time and speed settings.

Technical data
Model: UW-01
Functions: Cleaning and curing (post-processing for 3D printed models)
Control: Touch keys, LED indicators, digital time display
Rated power: 96 W
Input voltage: 24 V
Cleaning/curing time: 2–90 min (selectable)
Cleaning usable volume: 170 × 120 × 160 mm
Curing usable area: 165 × 200 mm
Machine dimensions: 225 × 225 × 370 mm
Machine weight: 6.5 kg

Product features

• Large sealable cleaning cartridges
• Dual-band UV light source
• 360° magnetic rotating platform
• Three speed adjustments
• High-definition touch sensor buttons
