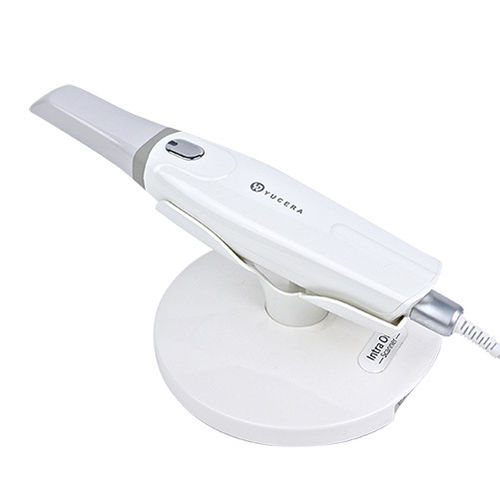

3D dental scanner YRC-S03

for dental laboratoriesfor dental clinicsfor dental prostheses

Overview
Comprehensive digital dentistry solutions, intraoral scanner for digital dentistry designed to enhance efficiency and precision.

Key parameters
Crown ≤15μm; Full bridge ≤30μm
Accuracy: Crown ≤15μm, Full bridge ≤30μm
Full scan time: 1.5 min (90s full mouth scan indicated)
Single scan range: 80 mm
Depth of field: 15 mm

Features

• 204g ultra-light handle: integrated body, ergonomic design for comfortable one-hand operation; standard-size scanning head adapts to varying mouth openings.
• 90s full mouth scan: quick impression taking with linear scanning speed up to 80 mm/s.
• AI intelligent core: multiple intelligent auxiliary modes delivering clean and clear data without interference; suitable for various clinical scenarios.
• Cloud platform: supports efficient collaboration between clinicians, patients and technicians; supports chairside mode and clinic + technician workflows with visualized process flows.

Technical Data

• Scope of reconstruction: 14 x 14 x 15 mm.
• Camera resolution: 1.3 MP CMOS.
• Pixel size: 4.8 μm.
• Pixel format (alternative): 1024 x 768 pixels (listed under Specification).
• Oral scanning light source: LED (without laser radiation).
• Export/development data formats: OBJ / STL / PLY.
• Light radiant intensity: ≤ 100 Mw/cm.
• Standard scanning head size: 78.9 x 19.8 x 15.8 mm.
• Mini scanning head size: 79.2 x 16.2 x 12.8 mm.
• Scanner weight: 210 g (product text also references 204 g ultra-light handle).
• Data cable length: 2.0 m.
• Connection: Type-C, USB 3.0.
• Power input voltage: 5 V DC; operating current: 750 mA.
• Product life: 12 years.
• Applied part: scanner head; safety classification: Type B medical device equipment.
• Operation mode: continuous; Degree of protection against ingress of water: IPX0.
• Standards / classification references: IEC 60601-1, IEC 60601-1-2, EN 150 780 (packaging/distribution graphical symbols noted).

Operating environment

• Operating temperature: 10°C to 40°C.
• Operating relative humidity: ≤ 85%.
• Operating atmospheric pressure: 86 kPa to 106 kPa.
• Storage/transport temperature: -20°C to 55°C.
• Storage/transport relative humidity: < 85%.
• Storage/transport atmospheric pressure: 70 kPa to 106 kPa.

Components (standard delivery)

• Scanner handpiece: 1
• Scanner tip: 3
• Scanner tip (mini): 1
• Base: 1
• Data cable (Type-C): 1
• Protective tip: 1
• U disk with software: 1
• USB to Type-C adapter: 1
• Operational manual: 1
• Certificate of conformity / warranty card: 1
• Packaging box: 1
• Calibration tip (optional): 1

Common problems and troubleshooting

• Device does not power on: ensure the host computer is powered and that device connections are secure; verify computer meets software requirements.
• Device power indicator on but computer does not recognize device (main indicator flashing blue): check cable connections and ensure Type-C/USB interfaces meet hardware requirements; avoid non-specified adapters.
• Computer recognizes device but application shows no image: device may be in sleep mode (wake by motion); restart application and reconnect; reseat connections.
• Device interruptions during use: device may have activated thermal protection—power off and wait 5–10 minutes depending on ambient temperature before restarting; verify interfaces and cable integrity.
• Lens fogging during use: defog the lens before use or gently warm the lens before continuing; do not spray or immerse the device (IPX0 rating).
• Image stuttering, slowdown or disconnection: verify secure connections and check for overheating or internal cable damage.
• Image noise or color distortion: handle device carefully to avoid impacts; consider software calibration if imaging artifacts persist.

Product documentation
Product manual and a downloadable PDF product manual are provided by the manufacturer (manual available on the product page).

Caractéristiques / spécifications techniques

• Model: YRC-S03 intraoral digital impression scanner.
• Reconstruction volume: 14 x 14 x 15 mm.
• Camera: 1.3 MP CMOS; pixel size 4.8 μm; image format options include 1024 x 768.
• Scanning speed: linear scanning up to 80 mm/s; full-mouth scan ~90 s (1.5 min listed).
• Accuracy: Crown ≤15 μm; Full bridge ≤30 μm.
• Scanning head sizes: standard 78.9 x 19.8 x 15.8 mm; mini 79.2 x 16.2 x 12.8 mm.
• Weight: ~204–210 g (listed values on page).
• Interfaces: Type-C, USB 3.0; data cable 2.0 m.
• Power: DC 5 V, operating current 750 mA.
• Export formats: OBJ / STL / PLY.
• Operating environment: 10°C–40°C, ≤85% RH, 86–106 kPa.
