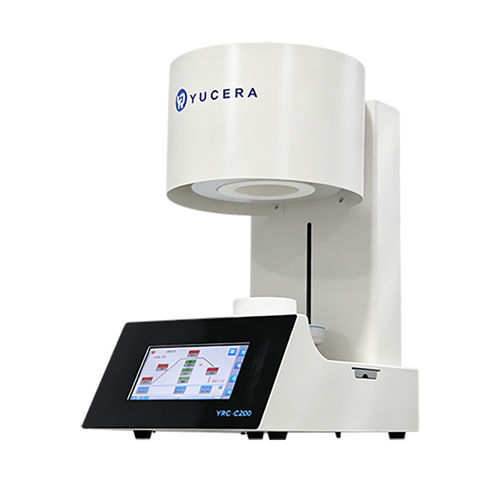

Sintering oven YRC-C200

for dental laboratoriesvacuumfor ceramics

Overview
The YRC-C200 porcelain furnace is designed for dental laboratories to provide a controlled vacuum sintering environment that minimizes porosity and air entrapment. It supports predictable shade reproduction, improved translucency and surface finish, and enhances mechanical properties for durable ceramic restorations.

Features

• Densely Wound Heating Coil Technology: Coil design reduces thermal concentration and element creep, delivering uniform temperature distribution across the chamber for consistent sintering results.
• High-Precision Vacuum Control System: Built-in absolute pressure sensor with automatic altitude compensation maintains target vacuum levels for repeatable cycles and stable material processing.
• Extensive Porcelain Program Library: 50 single-stage standard firing programs and 10 dedicated two-stage glass-ceramic programs accommodate a wide range of dental ceramics and glass-ceramics.
• 7-Inch HD Capacitive Touchscreen: High-resolution color interface with capacitive touch for fast, intuitive operation and program selection.

Technical Data
The furnace includes detailed specifications covering dimensions, weights, chamber and heating characteristics, temperature performance, control accuracy, electrical requirements, vacuum capability and program capacity.

Characteristics / technical specifications

• Model name referenced in text: YRC-C200
• Size: 415 x 260 x 530 mm
• Net weight: 15 kg
• Vacuum pump net weight: 9.5 kg
• Chamber size: diameter 95 mm x height 60 mm
• Sintering platform diameter: 85 mm
• Heating element: imported resistance wire + quartz chamber
• Heating power: ≤1050 W
• Maximum temperature (absolute): 1200 °C
• Maximum operating temperature: 1050 °C
• Temperature control accuracy: ±1 °C adaptive PID
• Heating rate: 1–100 °C/min adjustable
• Screen: 7-inch HD capacitive touch screen
• Voltage: 220 V / 50 Hz (110 V / 60 Hz optional)
• Fuse specification: 15 A
• Maximum vacuum degree: 97%
• Vacuum pump voltage: 220 V / 50 Hz (110 V / 60 Hz optional)
• Program library: 50 single-stage standard firing programs; 10 two-stage glass-ceramic firing programs
