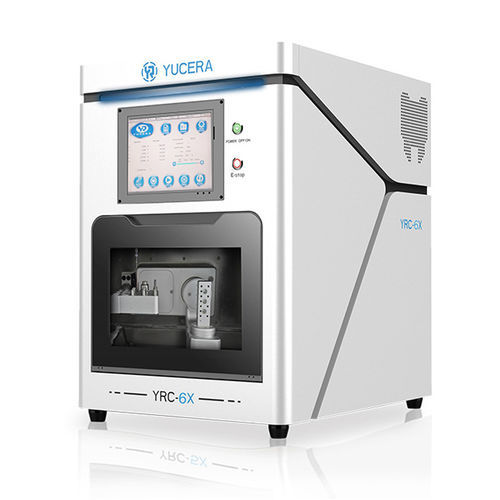

CAD/CAM milling machine YRC-6X

dentalfor dental laboratoriesfor dental clinics

Overview
The YRC-6X is a wet 5-axis dental milling machine designed for dental clinics and labs. An upgraded larger display improves usability. The unit delivers high precision, fast wet milling and supports a wide range of dental materials, enabling efficient chairside and laboratory workflows.

Key Parameters

• Axes: 5
• Disc slots: 0
• Blocks capacity: 6+2
• Tool magazine: 10 tools

Features

• 5-axis linkage, fine finishing: Full 5-axis simultaneous cutting for large-angle, high-accuracy finishing; supports minimum edge thicknesses down to 0.1 mm and precise titanium column machining.
• Multi-material processing: Compatible with glass ceramics, zirconia, titanium, PMMA and composite materials; supports placement of multiple material blocks for batch or mixed workflows.
• Integrated water level monitoring: Automatic circulating water cooling with built-in level control for stable wet milling performance.

Materials

• Glass ceramics
• Zirconia
• Titanium
• PMMA
• Composite materials

Indications

• Veneers
• Single crowns
• Inlays
• Onlays
• Bridges (up to 3-unit typical)
• Abutments
• Telescopic crowns

Documents
Promotional brochure and product manual available for download (see product documents).

Technical Data

• GENERAL: Application: wet machining; Supported materials: glass ceramics, titanium, zirconia, PMMA, composites; Typical indications as listed above.
• BASE SYSTEM: Solid cast aluminium bed; sheet-steel housing with white high-gloss finish; linear axes XYZ on ground precision guides; A-axis rotation 360° (continuous); B-axis precision ball-screw rotation +20°; RGB LED chamber lighting with status display.
• ENVIRONMENT: Operating temperature 10°C–35°C; Max relative humidity 80% (non-condensing).
• PROCESSING: 5-axis linkage wet milling; Typical cycle times: full crown < 15 min, 3-unit bridge < 30 min; Processable material thickness 10–30 mm.
• CONNECTIONS: Rated working pressure 6.0–7.5 bar (dry, oil-free); Power supply 220–230 V, 1.5 kW.
• AUTOMATION: Automatic tool change; tool magazine for 10 tools.
• DIMENSIONS & WEIGHT: Dimensions (W/D/H) 535 x 655 x 720 mm (with open flap and drawer); Footprint 480 x 580 mm; Weight 170 kg.
• SPINDLE: High-frequency spindle with pneumatic tool clamping; sealing air to prevent debris ingress; Speed up to 60,000 rpm; Peak power 1500 W, nominal 800 W.
• APPROVALS: CE, VDE (all models); UL, FCC (North America model).

Specifications

• Model: YRC-6X
• Brand: Yucera
• Type: Wet 5-axis dental milling machine
• Axes: 5 (XYZ + A + B)
• Blocks capacity: 6+2
• Tool magazine: 10
• Spindle speed: up to 60,000 rpm
• Spindle power: Pmax 1500 W / nominal 800 W
• Power supply: 220–230 V, 1.5 kW
• Approvals: CE, VDE (UL, FCC for NA)
