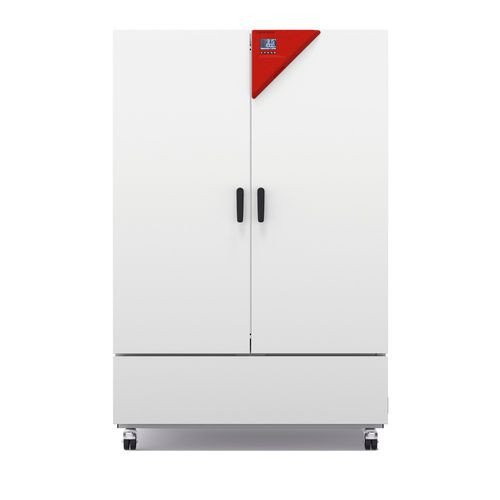

Cooling laboratory incubator KB ECO 720

forced convectionfor scientific researchfor microbiology

Product description
The KB ECO 720 is a thermoelectric (Peltier) cooling incubator engineered for energy-efficient temperature control and quiet operation. Patented heat-dissipation technology and an all-stainless-steel inner chamber make it suitable for laboratory applications requiring stable incubation and refrigerated cycling over a wide temperature range.

Benefits

• Safe: Unique condensate and dry-out protection for all operating conditions
• Reliable: Fail-safe operation via intelligent thermoelectric tempering
• Smart: Programmable temperatures for alternating incubation and refrigeration cycles
• Economical: Minimized energy consumption through optimized thermoelectric cooling

Important characteristics

• Temperature range: 0 °C to +70 °C (max. 26 °C below ambient)
• APT.line™ preheating chamber technology
• Electric temperature control using a thermoelectric cooling module with patented heat dissipation
• Inner door made of tempered safety glass
• Inner chamber entirely stainless steel
• Standard: 2 stainless steel racks (expandable to max. 15)
• Adjustable condensate protection
• Access port with silicone plug Ø 30 mm
• LCD for temperature display, additional info and alarms
• Internal data logger; measured values exportable in open format via USB
• Unit self-test for comprehensive status analysis
• Computer interface: Ethernet

Technical specifications (selected details)
Data
Article Number: 9020-0424 | 9020-0427
Designation: KBECO720-230V | KBECO720UL-120V
Option model: Standard

Performance Data — Temperature
Temperature range: (max. 26 °C under ambient) 0...70 °C
Temperature uniformity at 37 °C: 0.1 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Max. heat compensation at 40 °C: 500 W
Recovery time after 30 s door opening at 37 °C: 4 min

Electrical data
Rated Voltage: 200...230 V (9020-0424) | 100...120 V (9020-0427)
Power frequency: 50/60 Hz
Nominal power: 1.3 kW
Unit fuse: 16.0 A
Phase (Nominal voltage): 1~

Dimensions and weights
Interior volume: 700 L
Net weight (empty): 272 kg
Load per rack: 45 kg
Permitted load: 150 kg
Wall clearance back/side: 100 mm / 100 mm

Housing dimensions (net, excl. fittings)
Width net: 1,250 mm
Height net: 1,925 mm
Depth net: 885 mm

Internal dimensions
Interior width: 973 mm
Interior height: 1,250 mm
Interior depth: 576 mm
Inner doors: 2
Unit doors: 2

Environment-specific data
Sound-pressure level: 47 dB(A)
Energy consumption at 25 °C: 75 Wh/h
Energy consumption at 37 °C: 105 Wh/h

Fixtures
Number of shelves (std./max.): 2 / 15

Options, accessories & services (selection)
Door lock (lockable handle), calibration certificates, access ports with silicone plugs (30/50/100 mm), reinforced stainless-steel racks and perforated shelves, LED light bars, APT-COM™ software (BASIC / PROFESSIONAL / GLP), maintenance contracts (BRONZE / SILVER / GOLD), commissioning, user manuals and IQ/OQ/PQ services.
