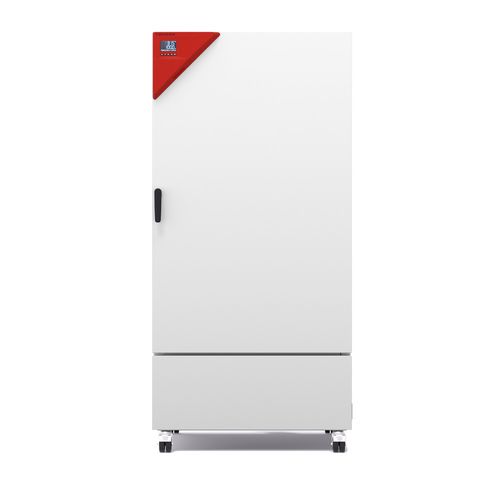

Cooling laboratory incubator KB ECO 400

forced convectionthermoelectricfor microbiology

Product description
The KB ECO 400 cooling incubator uses thermoelectric (Peltier) cooling with patented heat dissipation to provide energy-efficient, low-noise refrigeration for laboratory incubation and temperature-controlled storage. The unit is refrigerant-free and designed for reliable continuous operation in research and QA/QC environments.

Benefits

• Safe: Unique condensate and dry-out protection across operating conditions
• Reliable: Fail-safe operation through intelligent thermoelectric temperature control
• Smart: Programmable temperature profiles for alternating incubation and refrigeration cycles
• Economical: Low energy consumption thanks to optimized thermoelectric cooling

Important characteristics

• Temperature range: 0 °C to +70 °C (max. 28 °C below ambient)
• APT.line™ preheating chamber technology
• Electric temperature control via thermoelectric cooling module with innovative heat dissipation
• Inner door made of tempered safety glass
• Inner chamber entirely stainless steel
• 2 stainless-steel racks standard (up to 15 positions max.)
• Adjustable condensate protection
• Access port with silicone plug Ø 30 mm
• LCD displays temperature, additional information and alarms
• Internal data logger; measured values readable in open format via USB
• Unit self-test for comprehensive status analysis
• Computer interface: Ethernet

Data
Article Number: 9020-0465 / 9020-0466
Designation: KBECO400-230V (9020-0465) / KBECO400-120V (9020-0466)
Option model: Standard

Performance Data — Temperature
Temperature range: (max. 28 °C under ambient temperature) 0...70 °C
Temperature uniformity at 37 °C: 0.1 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Max. heat compensation at 40 °C: 350 W
Recovery time after door opened 30 s at 37 °C: 6 min

Electrical data
Rated Voltage: 200...230 V (9020-0465) / 100...120 V (9020-0466)
Power frequency: 50/60 Hz
Nominal power: 1.2 kW
Unit fuse: 16.0 A
Phase (Nominal voltage): 1~

Dimensions and weights
Interior volume: 400 L
Net weight (empty): 196 kg
Load per rack: 30 kg
Permitted total load: 120 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 100 mm

Housing dimensions (not incl. fittings and connections)
Width net: 925 mm
Height net: 1,946 mm
Depth net: 796 mm

Internal Dimensions
Interior width: 650 mm
Interior height: 1,268 mm
Interior depth: 485 mm
Inner doors: 1
Unit doors: 1

Environment-specific data
Sound-pressure level: 43 dB(A)
Energy consumption at 25 °C: 45 Wh/h
Energy consumption at 37 °C: 70 Wh/h

Fixtures
Number of shelves (std./max.): 2 / 15

Technical specifications

• Model: KB ECO 400
• Temperature range: 0…+70 °C (max. 28 °C below ambient)
• Interior volume: 400 L
• Interior dimensions (W×H×D): 650 × 1,268 × 485 mm
• Housing dimensions (W×H×D): 925 × 1,946 × 796 mm
• Net weight (empty): 196 kg
• Power supply options: 200…230 V or 100…120 V, 50/60 Hz
• Nominal power: 1.2 kW; unit fuse 16 A; single-phase
• Thermoelectric cooling with patented heat dissipation (quiet, energy-efficient, refrigerant-free)
• Temperature control accuracy: uniformity and fluctuation 0.1 K at 37 °C
• Max. heat compensation at 40 °C: 350 W; recovery time after 30 s door opening at 37 °C: 6 min
• 2 stainless-steel racks standard (up to 15 positions max.); load per rack 30 kg; permitted total load 120 kg
• Inner chamber fully stainless steel; inner door tempered safety glass
• Adjustable condensate protection; access port Ø 30 mm (silicone plug)
• LCD display with alarms; internal data logger with USB export (open format)
• Unit self-test and Ethernet computer interface
• Sound-pressure level: 43 dB(A); energy consumption examples: 45 Wh/h (25 °C), 70 Wh/h (37 °C)
