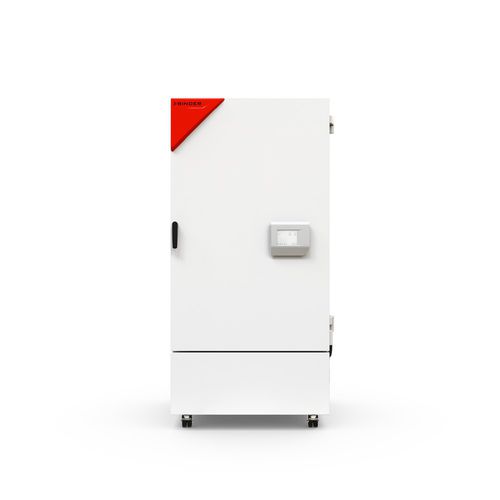

Cooling laboratory incubator KB PRO 470

forced convectionCO2for scientific research

Product description
The KB PRO 470 is a cooling incubator designed for laboratory and industrial applications requiring precise temperature control between -20 °C and +100 °C. With advanced programming functions, optional light and CO₂ modules, and a corrosion-resistant stainless-steel inner chamber, it supports tasks from standard incubation to ICH photostability testing and controlled plant-growth studies.

Benefits

• Flexible temperature range suitable for a wide range of processes
• Long-term reliable operation based on proven compressor and stainless-steel inner chamber
• User-friendly operation: touch-screen program controller, ergonomic control terminal, visual status indicator
• Energy-efficient performance via modern inverter cooling technology and climate-neutral R-290 refrigerant

Important characteristics

• Temperature range: -20 °C to +100 °C
• APT.line™ preheating chamber technology
• Inverter cooling unit for efficient temperature control
• R-290 refrigerant (climate-neutral)
• Door heating to prevent condensation
• Adjustable fan speed
• HIT sandwich housing technology
• Stainless-steel inner chamber
• Inner doors made of metal-oxide coated safety glass
• Two stainless-steel racks with telescopic rails
• 80 × 45 mm access port with silicone plug
• Floor-standing unit with robust twin casters and front brakes
• Intuitive touchscreen controller with time-segment and real-time programming
• Ergonomically adjustable operating terminal
• Signal triangle with illuminated status display
• Internal data logger; measured values exportable in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ Basic Edition
• Optional light modules for ICH photostability tests and LED plant-growth modules
• Optional CO₂ gassing modules for plant growth (0–1%) and cell culture (0–20%)

Technical specifications (extract)

• Article Number: 9020-0435
• Designation: KBPRO470-230V
• Model version: Standard
• Temperature range: -20...100 °C
• Temperature uniformity at 37 °C: 0.2 ± K
• Temperature fluctuation at 37 °C: 0.1 ± K
• Max. heat compensation at 37 °C: 800 W
• Recovery time after 30 s door opening at 37 °C: 4 min
• Rated voltage: 208...240 V
• Power frequency: 50/60 Hz
• Nominal power: 1.5 kW
• Unit fuse: 16.0 A
• Phase (nominal voltage): 1~
• Interior volume: 472 L
• Net weight (empty): 233 kg
• Load per rack: 40 kg
• Permitted load: 200 kg
• Wall clearance back: 100 mm
• Wall clearance sidewise: 180 mm
• Width net: 930 mm
• Height net: 1,951 mm
• Depth net: 900 mm
• Interior width: 656 mm
• Interior height: 1,250 mm
• Interior depth: 575 mm
• Inner doors: 1
• Unit doors: 1
• Number of shelves (std./max.): 2/16
• Sound-pressure level at 25 °C: 50 dB(A)
• Energy consumption at 25 °C: 200 Wh/h
• Energy consumption at 37 °C: 205 Wh/h

Options, accessories & services (summary)

• Coated heat exchanger; reinforced inner chambers; manual or electromechanical locks
• LED interior lighting; levelling castors; shipping pallet
• Access ports with silicone plugs in multiple positions and diameters
• Voltage-free alarm outputs; analog 4-20 mA outputs; sample temperature sensors (Pt100)
• CO₂ gassing modules (0–1% and 0–20%); ICH light modules; LED plant-growth modules
• Tray/rail kits (standard and reinforced); calibration sets and certificates
• Service packages (Bronze/Silver/Gold), installation, calibration, IQ/OQ/PQ and commissioning
