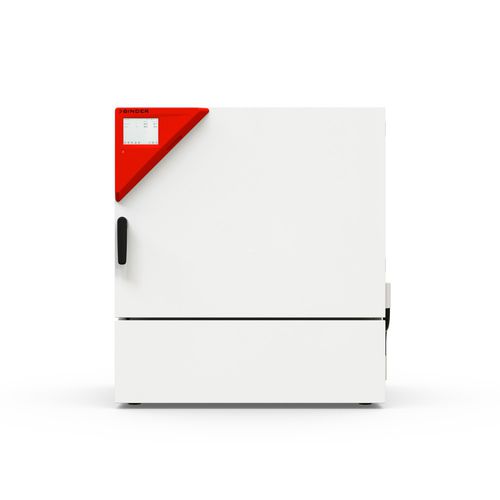

Cooling laboratory incubator KB PRO 130

forced airfor scientific researchfor microbiology

Product description
A temperature control cabinet designed for laboratory and research applications, the KB PRO 130 is a high-performance cooling incubator with a wide temperature range and advanced programming. With −20 °C to +100 °C capability and extensive control options, it supports microbiology, cell culture, plant growth research and other temperature-critical processes.

Benefits

• Accurate and powerful temperature control using advanced regulation technology
• Reliable long-term operation with proven compressor technology and a stainless-steel inner chamber
• Smart operation: illuminated status indicator, ergonomic touchscreen program controller and racks with telescopic rails
• Energy-efficient performance with modern inverter cooling technology and climate-neutral R-290 refrigerant

Key characteristics

• Temperature range: −20 °C to +100 °C
• APT.line™ preheating chamber technology
• Inverter refrigeration unit for energy-efficient cooling
• Climate-neutral refrigerant: R-290
• Door heating to prevent condensation
• Adjustable fan speed
• Robust housing with HIT sandwich construction
• Stainless-steel inner chamber
• Inner door made of metal-oxide-coated safety glass
• Two stainless-steel racks with telescopic rails
• Ø 30 mm access port with silicone plug
• Stackable design
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger; open-format export via USB
• Independent temperature safety device Class 3.3 (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ Basic Edition included
• Optional CO₂ gassing modules for plant growth (0–1%) and cell culture (0–20%)

Options / accessories / services (selection)

• CO₂ gasification modules (0–1% / 0–20%) — optional
• Mechanical or electromechanical locks (opening by PIN available)
• Interior LED lighting kits (weather-resistant)
• Coated heat exchanger for corrosive media
• Access ports: Ø 30 mm (standard), Ø 50 mm; left/right/top positions
• Potential-free alarm outputs, analog 4–20 mA output, sample temperature indicator (Pt100)
• LED light strips and photo-stability / plant growth modules
• Calibration certificates, maintenance contracts (Bronze/Silver/Gold), commissioning, IQ/OQ/PQ services

Technical specifications

• Article Number: 9020-0433
• Designation: KBPRO130-230V
• Option model: Standard
• Temperature range: -20…100 °C
• Temperature uniformity at 37 °C: 0.2 ± K
• Temperature fluctuation at 37 °C: 0.1 ± K
• Max. heat compensation at 37 °C: 450 W
• Recovery time after 30 s door opening at 37 °C: 2 min
• Rated voltage: 208…240 V
• Power frequency: 50/60 Hz
• Nominal power: 1 kW
• Unit fuse: 16.0 A
• Phase (nominal voltage): 1~
• Interior volume: 127 L
• Net weight (empty): 135 kg
• Load per rack: 30 kg
• Permitted load: 150 kg
• Wall clearance back: 100 mm
• Wall clearance sidewise: 100 mm
• Width (net): 900 mm
• Height (net): 1,005 mm
• Depth (net): 710 mm
• Interior width: 656 mm
• Interior height: 500 mm
• Interior depth: 386 mm
• Inner doors: 1
• Unit doors: 1
• Sound-pressure level at 25 °C: 46 dB(A)
• Energy consumption at 25 °C: 155 Wh/h
• Energy consumption at 37 °C: 160 Wh/h
• Number of shelves (std./max.): 2/6
