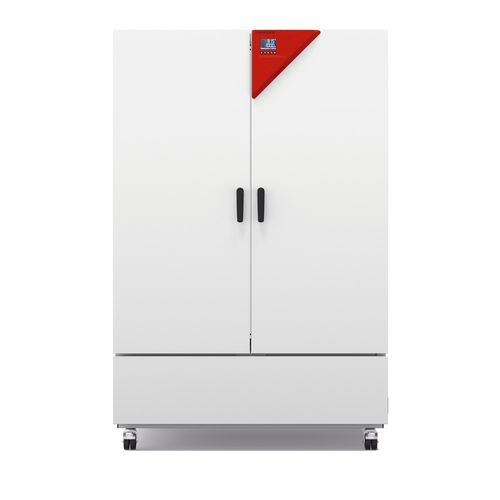

Cooling laboratory incubator KB ECO 1020

forced convectionthermoelectricfor scientific research

Product overview
The KB ECO 1020 is a thermoelectric (Peltier) cooled bacteriological cooling incubator designed for laboratory and clinical use. Patented heat dissipation enhances thermoelectric performance for low-noise, low-consumption operation while supporting alternating incubation and refrigeration cycles.

Key benefits

• Safe: unique condensate and dry-out protection across operating conditions
• Reliable: fail-safe operation via intelligent thermoelectric temperature control
• Programmable: temperature programs for alternating incubation and refrigeration
• Economical: minimized energy consumption due to optimized thermoelectric cooling

Key features

• Temperature range: 0 °C to +70 °C (max. 26 °C below ambient)
• APT.line™ preheating chamber technology
• Thermoelectric (Peltier) cooling module with patented heat dissipation
• Inner door: tempered safety glass
• Interior: stainless steel
• Standard shelving: 2 stainless steel racks (up to 15)
• Adjustable condensate protection
• Access port with silicone plug Ø 30 mm
• LCD with temperature, alarms and status information
• Internal data logger; measurement data exportable via USB in open format
• Unit self-test for comprehensive status analysis
• Computer interface: Ethernet

Technical specifications (selection)
Data
Article Number: 9020-0425 | 9020-0428
Designation: KBECO1020-230V | KBECO1020UL-120V
Option model: Standard

Performance Data — Temperature
Temperature range: (max. 26 °C under ambient) 0...70 °C
Temperature uniformity at 37 °C: 0.1 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Max. heat compensation at 40 °C: 500 W
Recovery time after 30 s door opening at 37 °C: 4 min

Electrical data
Rated voltage: 200...230 V (9020-0425) | 100...120 V (9020-0428)
Power frequency: 50/60 Hz
Nominal power: 1.3 kW
Unit fuse: 16.0 A
Phase: 1~

Dimensions and weights
Interior volume: 1,020 L
Net weight (empty): 327 kg
Load per rack: 45 kg
Permitted total load: 150 kg
Wall clearance back/side: 100 mm

Housing dimensions (not incl. fittings)
Width (net): 1,250 mm
Height (net): 1,925 mm
Depth (net): 1,149 mm

Internal dimensions
Interior width: 973 mm
Interior height: 1,250 mm
Interior depth: 836 mm
Inner doors: 2
Unit doors: 2

Environment-specific data
Sound-pressure level: 47 dB(A)
Energy consumption at 25 °C: 75 Wh/h
Energy consumption at 37 °C: 105 Wh/h

Fixtures
Number of shelves (std./max.): 2/15
