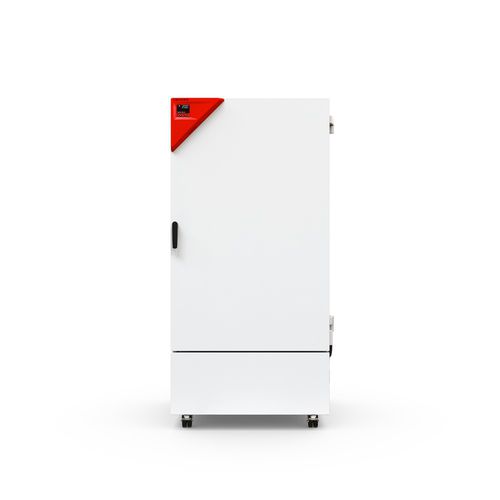

Cooling laboratory incubator KB 470

forced convectionfor scientific researchfor microbiology

Product description KB 470 cooling incubators are designed for precise incubation of microorganisms even under full load. The units include a hot‑air disinfection routine, easy programming for secondary setpoints and an energy‑efficient inverter cooling system that reduces consumption by up to 40% versus the previous model.

Benefits

• Assured: consistent, highly precise incubation conditions through power reserves
• Reliable: long‑term, failsafe operation with proven compressor technology and stainless‑steel interior
• Smart: hot‑air disinfection routine and simple programming of a second set temperature
• Economical: up to 40% lower energy consumption thanks to modern inverter cooling

Important characteristics

• Temperature range: 0 °C to +70 °C
• APT.line™ preheating chamber technology
• Inverter cooling unit with climate‑neutral R‑600a refrigerant
• Door heating to prevent condensation
• HIT sandwich housing technology
• Interior fully stainless steel; inner doors of metal‑oxide coated safety glass
• Two stainless‑steel racks (standard); access port 80 mm x 45 mm with silicone plug
• Floor‑standing with sturdy twin casters and front brakes
• Internal data logger; measured values exportable in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self‑test and data interfaces: Ethernet, USB

Variants / Designations
Article Number: 9020-0474 | Designation: KB470-230V
Article Number: 9020-0502 | Designation: KB470UL-120V

Performance data — Temperature
Temperature range: 0...70 °C
Temperature uniformity at 37 °C: 0.2 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Max. heat compensation at 37 °C: 530 W
Recovery time after 30 s door opening at 37 °C: 3 min

Electrical data
Rated voltage: 220...240 V (9020-0474) | 120 V (9020-0502)
Power frequency: 50/60 Hz
Nominal power: 1.3 kW
Unit fuse: 16.0 A
Phase (Nominal voltage): 1~

Dimensions and weights
Interior volume: 472 L
Net weight (empty): 212 kg
Load per rack: 40 kg
Permitted load: 200 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 180 mm

Housing dimensions (not incl. fittings and connections)
Width net: 930 mm
Height net: 1,951 mm
Depth net: 900 mm

Internal dimensions
Interior width: 656 mm
Interior height: 1,250 mm
Interior depth: 575 mm
Inner doors: 1
Unit doors: 1

Environment-specific data
Sound‑pressure level at 25 °C: 51 dB(A)
Energy consumption at 25 °C: 135 Wh/h (variant 9020-0474) | 170 Wh/h (variant 9020-0502)
Energy consumption at 37 °C: 140 Wh/h (variant 9020-0474) | 165 Wh/h (variant 9020-0502)

Fixtures
Number of shelves (std./max.): 2 / 16

Technical characteristics / specifications

• Model: KB 470
• Temperature range: 0 °C to +70 °C
• Interior volume: 472 L
• Interior material: stainless steel
• Cooling: inverter cooling unit with R‑600a refrigerant
• Energy consumption: from 135 Wh/h (variant dependent)
• Temperature uniformity (37 °C): 0.2 ± K; fluctuation: 0.1 ± K
• Max. heat compensation at 37 °C: 530 W
• Recovery time after 30 s door opening at 37 °C: 3 min
• Net weight: 212 kg
• Width x Height x Depth (net): 930 x 1,951 x 900 mm
• Internal usable dimensions (W x H x D): 656 x 1,250 x 575 mm
• Shelves (std./max.): 2 / 16; load per rack: 40 kg; permitted load: 200 kg
• Interfaces: Ethernet, USB; internal data logger with open‑format export via USB
• Safety: Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Additional features: hot‑air disinfection routine, door heating, APT.line™ preheating chamber technology, HIT sandwich housing technology
