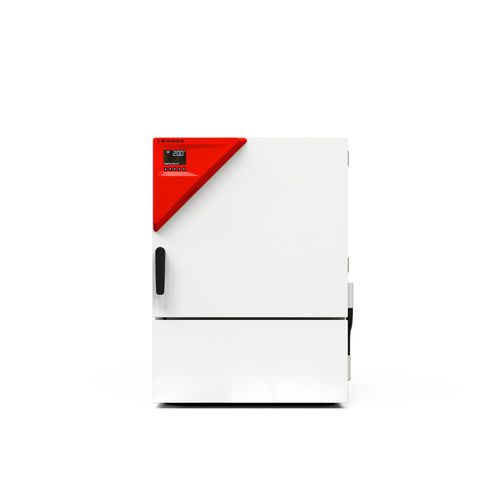

Cooling laboratory incubator KB 65

forced convectionfor scientific researchfor microbiology

Product description
The powerful virtuoso in cooling incubators for microorganisms: KB units are able to incubate with exceptional precision even when fully loaded, feature a hot-air disinfection routine, and can be programmed for weekend operation with ease. The new KB unit consumes as much as 40% less energy than the previous model.

Benefits

• Assured: highly precise incubation conditions thanks to power reserves
• Reliable: failsafe operation over the long term thanks to proven compressor technology and interior made of stainless steel
• Smart: hot-air disinfection and easy programming of a second set temperature
• Economical: up to 40% lower energy consumption than the previous model thanks to modern inverter cooling technology

Important characteristics

• Temperature range: 0 °C to +70 °C
• Proven APT.line™ preheating chamber technology
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with climate-neutral R-600a refrigerant
• Door heating to prevent condensation
• Sturdy housing design with HIT sandwich technology
• Interior made completely of stainless steel
• Inner doors made of metal oxide-coated safety glass
• Two racks made of stainless steel (standard)
• Ø 30 mm access port with silicone plug
• Stackable
• Simple programming of a second set temperature value
• Internal data logger, measured values can be read out in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB

Selected technical data (tables)
Data (Article Numbers / Designation): 9020-0471 / KB065-230V ; 9020-0491 / KB065UL-120V

Performance Data Temperature:
Temperature range: 0...70 °C
Temperature uniformity at 37°C: 0.2 ± K
Temperature fluctuation at 37°C: 0.2 ± K
Max. heat compensation at 37°C: 160 W
Recovery time after door was opened for 30 s at 37°C: 3 min

Electrical data:
Rated Voltage: 220...240 V (9020-0471) / 120 V (9020-0491)
Power frequency: 50/60 Hz
Nominal power: 0,9 kW
Unit fuse: 16,0 A
Phase (Nominal voltage): 1~

Dimensions and weights:
Interior volume: 63 L
Net weight of the unit (empty): 95 kg
Load per rack: 30 kg
Permitted load: 90 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 100 mm

Housing dimensions (net): Width net: 650 mm ; Height net: 905 mm ; Depth net: 710 mm

Internal Dimensions:
Interior width: 406 mm ; Interior height: 400 mm ; Interior depth: 386 mm
Inner doors: 1 ; Unit doors: 1

Environment-specific data:
Sound-pressure level at 25°C: 44 dB(A)
Energy consumption at 25°C: 80 Wh/h (variant) / 95 Wh/h (other variant)
Energy consumption at 37°C: 90 Wh/h (variant) / 100 Wh/h (other variant)

Fixtures:
Number of shelves (std./max.): 2/4

Options / Accessories (selection)

• Inner chamber, reinforced — Max. total load 100 kg — Article no. 8012-2505
• Interior lighting — climate-resistant LEDs, switches when the unit door is opened — Article no. 8012-2555
• Door lock — lockable door handle — Article no. 8012-2529
• Electromechanical door lock — can be opened with PIN code via controller — Article no. 8012-2531
• Access port with silicone plug, various positions/sizes — e.g. top 100 mm (8012-2472), left 30/50 mm (8012-2465 / 8012-2466), right 30/50 mm (8012-2468 / 8012-2469)
• Alarm output, zero-voltage — Article no. 8012-2370
• Analog output 4-20 mA for temperature values — Article no. 8012-2371
• Specimen temperature display (Pt 100 sensor) — Article no. 8012-2549
• Calibration certificates and expanded calibration options (various scopes) — e.g. 8012-2571, 8012-2372, 8012-2376, 8012-2380, 8012-2424
• Software / logging: APT-COM™ 4 BASIC / PROFESSIONAL / GLP editions (9053-0039 / 9053-0040 / 9053-0042)
• Accessories: standard rack / perforated rack / base with swivel casters / stacking adapter / LED light bars / pH-neutral detergent, etc.

Note
Two article numbers correspond to the two voltage versions: 9020-0471 (230 V) and 9020-0491 (120 V).

caractéristiques / spécifications techniques

• Model name: KB 65
• Temperature range: 0 °C to +70 °C
• Temperature uniformity / fluctuation at 37°C: 0.2 ± K
• Max. heat compensation at 37°C: 160 W
• Recovery time after 30 s door opening (37°C): 3 min
• Interior volume: 63 L
• Interior dimensions (W×H×D): 406 × 400 × 386 mm
• External dimensions (W×H×D): 650 × 905 × 710 mm
• Net weight (empty): 95 kg
• Load per rack: 30 kg ; permitted load: 90 kg
• Number of shelves (std./max.): 2 / 4
• Rated voltage options: 220...240 V or 120 V (see article numbers)
• Nominal power: 0.9 kW ; Unit fuse: 16.0 A ; Phase: 1~
• Energy consumption (25°C): approx. 80 Wh/h (variant) / 95 Wh/h (other)
• Energy consumption (37°C): approx. 90 Wh/h (variant) / 100 Wh/h (other)
• Sound-pressure level: 44 dB(A)
• Cooling technology: inverter cooling unit; refrigerant: R-600a (climate-neutral)
• Interior: stainless steel; inner door: metal oxide-coated safety glass
• Door heating to prevent condensation; HIT sandwich housing
• APT.line™ preheating chamber technology
• Hot-air disinfection; programmable second set temperature; weekend operation programming
• Internal data logger; measured values can be read via USB in open format
• Independent temperature safety device: Class 3.3 (DIN 12880) with visual and acoustic alarms
• Data interfaces: Ethernet, USB
• Access port Ø 30 mm (silicone plug) and multiple optional access ports
• Stackable; available accessories include racks, lighting, locks, calibration services and software for logging/documentation
• Article numbers: 9020-0471 (KB065-230V) and 9020-0491 (KB065UL-120V)
