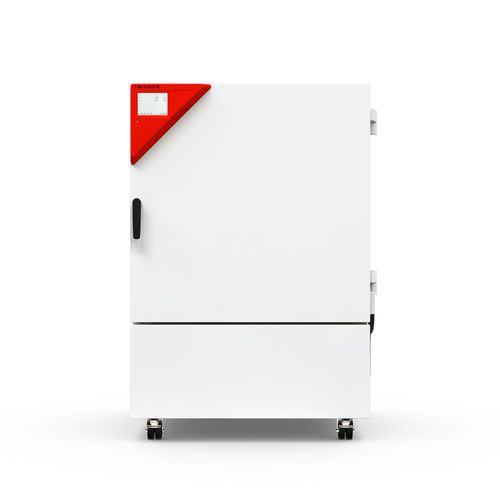

Cooling laboratory incubator KB PRO 260

forced convectionfor scientific researchfor microbiology

Product description A versatile temperature-control cabinet, the KB PRO handles a wide temperature range from -20 °C to +100 °C and offers comprehensive programming options for applications beyond standard incubation. Optional light modules enable ICH photostability testing or plant-growth applications.

Benefits

• Precise temperature regulation using advanced control technology
• Reliable: long-term failsafe operation ensured by proven compressor technology and a stainless-steel inner chamber
• Operational ergonomics: signal triangle with illuminated status, ergonomic control terminal with touchscreen program controller, racks with telescopic rails
• Energy-efficient operation via modern inverter cooling technology

Important characteristics

• Temperature range: -20 °C to +100 °C
• APT.line™ preheating chamber technology
• Energy-efficient cooling with inverter refrigeration unit
• Climate-neutral R-290 refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Robust housing with HIT sandwich technology
• Stainless-steel inner chamber
• Inner doors of metal-oxide-coated safety glass
• Two stainless-steel racks with telescopic rails
• 80 mm x 45 mm access port with silicone plug
• Floor-standing units with sturdy twin casters and front brakes
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger; measured values readable in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic edition
• Optional light modules for ICH photostability tests
• Optional LED light modules for plant growth
• Optional CO₂ gassing modules for plant growth (0–1%) and cell culture (0–20%)

Technical specifications (key data)
Article Number: 9020-0434
Designation: KBPRO260-230V
Option model: Standard

Performance Data - Temperature
Temperature range: -20...100 °C
Temperature uniformity at 37°C: 0.2 ± K
Temperature fluctuation at 37°C: 0.1 ± K
Max. heat compensation at 37°C: 800 W
Recovery time after door was opened for 30 s at 37°C: 3 min

Electrical data
Rated Voltage: 208...240 V
Power frequency: 50/60 Hz
Nominal power: 1,5 kW
Unit fuse: 16,0 A
Phase (Nominal voltage): 1~

Dimensions and weights
Interior volume: 262 L
Net weight of the unit (empty): 190 kg
Load per rack: 40 kg
Permitted load: 200 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 180 mm
Width net: 930 mm
Height net: 1,396 mm
Depth net: 900 mm

Internal Dimensions
Interior width: 656 mm
Interior height: 695 mm
Interior depth: 575 mm
Inner doors: 1
Unit doors: 1

Environment-specific data
Sound-pressure level at 25°C: 48 dB(A)
Energy consumption at 25°C: 180 Wh/h
Energy consumption at 37°C: 185 Wh/h
