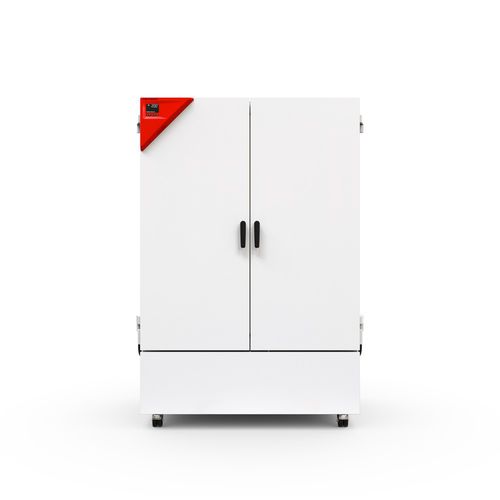

Cooling laboratory incubator KB 720

hot airthermoelectricfor scientific research

Product description
The KB series offers two laboratory cooling incubator variants for microbiology: KB 720 with inverter compressor cooling and KB ECO 720 with thermo‑electric Peltier regulation. Both provide controlled incubation from 0 °C to +70 °C, stainless‑steel interiors, programmable setpoints and internal data logging. The KB 720 adds hot‑air disinfection and higher load capacity; the KB ECO 720 provides very low noise and optimized Peltier energy performance.

Benefits

• Precise: tight temperature control and spatial uniformity for reproducible cultures
• Reliable: robust stainless‑steel chamber and proven cooling/regulation technologies (compressor or Peltier)
• Hygienic: hot‑air disinfection (KB 720) and door heating to avoid condensation
• Programmable: second setpoint, weekend operation and unit self‑test for status analysis
• Energy‑efficient: modern inverter compressor or optimized Peltier modules reduce energy consumption

Important characteristics

• Temperature range: 0 °C to +70 °C
• APT.line™ preheating chamber technology (select models)
• Stainless‑steel interior; inner doors of metal‑oxide coated safety glass
• Door heating and adjustable condensation protection
• Hot‑air disinfection routine (KB 720)
• Internal data logger, measured values readable in open format via USB; Ethernet interface
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Access port with silicone plug (Ø 30 mm or 80 x 45 mm depending on model)
• Floor‑standing design with twin casters and front brakes
• Two stainless‑steel racks standard; expandable shelf capacity

Technical specifications (selected)

• Models & article numbers: KB 720 — 9020-0475 (KB720-230V) / 9020-0503 (KB720UL-120V); KB ECO 720 — 9020-0424 (KBECO720-230V) / 9020-0427 (KBECO720UL-120V)
• Temperature range: 0...70 °C
• Temperature uniformity at 37 °C: 0.2 ± K (KB 720) / 0.1 ± K (KB ECO 720)
• Temperature fluctuation at 37 °C: 0.1 ± K
• Max. heat compensation: 640 W (KB 720) / 500 W (KB ECO 720)
• Recovery time after 30 s door opening at 37 °C: 3 min (KB 720) / 4 min (KB ECO 720)
• Interior volume: 727 L (KB 720) / 700 L (KB ECO 720)
• Net weight (empty): 285 kg (KB 720) / 272 kg (KB ECO 720)
• Nominal power: 1.5 kW (KB 720) / 1.3 kW (KB ECO 720)
• Rated voltage: 220...240 V (230V versions) or 120 V (UL versions); 50/60 Hz
• Number of shelves (std./max.): 2 / up to 16 (KB 720) or 2 / up to 15 (KB ECO 720)
• Access port: 80 x 45 mm with silicone plug (KB 720) / Ø 30 mm silicone plug (KB ECO 720)
• Energy consumption (typical): KB 720 — 235 Wh/h (25 °C) / 255 Wh/h (37 °C) ; KB ECO 720 — 75 Wh/h (25 °C) / 105 Wh/h (37 °C)
• Cooling technology: KB 720 — modern inverter compressor with climate‑neutral R-600a refrigerant; KB ECO 720 — thermo‑electric Peltier regulation
