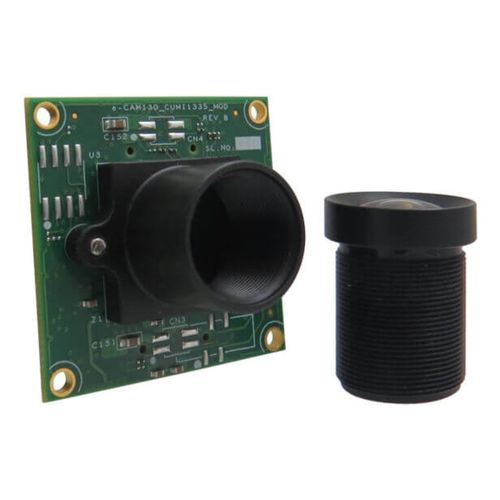

Medical camera module e-CAM131_CUMI1335_MOD

dentaldigitalfull HD

e-CAM131_CUMI1335_MOD is a high performance, 13 MP 4K camera module with S-Mount lens holder and it has better low light performance. This small form factor 4K camera module is based on 1/3.2” AR1335 CMOS image sensor from onsemi® and has a dedicated, high-performance Image Signal Processor (ISP) that performs the entire Auto functions like auto white balance, auto exposure control in addition to complete image signal processing pipeline that provides best-in-class images and video and the optional MJPEG compression. This camera can achieve up to 816fps for custom Region of Interest (ROI) resolutions. 13MP Colour camera with 4-lane MIPI CSI-2 interface 1/3.2" Optical Form-factor Uncompressed UYVY streaming & Compressed MJPEG streamingS-mount interchangeable lens holder for flexibility to choose a lens as per application requirementsExternal Trigger inputFace detection capabilityMaximum Image Transfer Rate : Uncompressed UYVY Output Format Power consumption of Camera Module Board : 1.10W (Approx)Temperature Range Operation - -30° to 70° CStable Image - 0° to 50° C Small form-factor30mm x 30mm sizeBoard Weight: 6 Grams2x 20-pin SMT Connectors on two sides of the camera module for better mechanical stabilityCompliance FCCRoHS Launched on:launch date* - Not supported by default. Requires firmware customization for higher framerates with custom ROI resolutions.
