Inspection camera e-CAM210_CUQRB5 - Sony® Starvis™ IMX462

digitalHDRfull HD

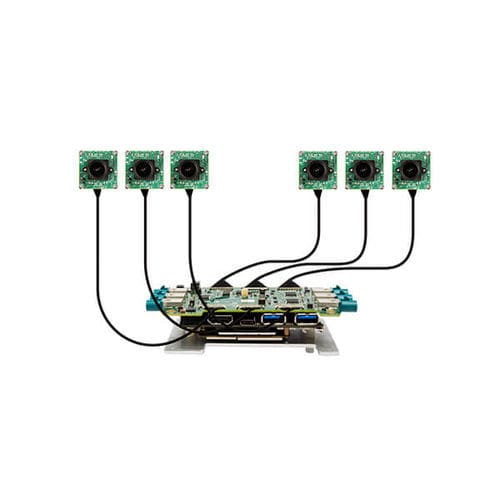

Houses e-CAM221_CUMI462_MOD - Full HD Sony® STARVIS Camera Module Ultra-Low light performance High-speed MIPI CSI-2 interface to connect with the CPU 6 cameras can be connected to Qualcomm® Robotics RB5 Development Kit Uses Qualcomm QRB5165 ISP for image processing e-CAM210_CUQRB5 is a Full HD MIPI camera for Qualcomm® Robotics RB5 kit. It is based on a 1/2.8" Sony® STARVIS IMX462 image sensor which helps in producing excellent images even in low light conditions. This multi-camera solution supports up to six camera modules with the Qualcomm® Robotics RB5 kit and is capable of streaming Full HD @ 30fps. e-con Systems fine tunes Qualcomm QRB5165 ISP for Auto Exposure (AE), Auto White Balance (AWB), HDR, ultra-low light, color reproduction, and noise reduction. Key features: Frame Rate: Full HD @ 30fps Refer pdfDatasheet for complete frame rate details. S-mount lens holder for flexibility to choose a lens as per application requirements Lightweight, versatile, and portable design Interface: Interface: MIPI CSI-2 Connector: Micro coaxial cable with I-PEX (CN2) connector Cable Length: 30cm (1m*) Sensor features: Sensor: IMX462 sensor from SONY® Starvis Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/ 2.8" Output Format: RAW 10/12-bit Pixel Size: 2.9 μm x 2.9 μm Sensor Active Area: 1945H x 1097V Array Size: 1945H x 1109V Holder: S-Mount Fov: TBD Electrical & Mechanical: Operating Voltage: 3.3V +/- 5% Operating Temperature Range: -30°C to +70°C Typical power consumption: TBD Size in mm (l x b x h): Camera board: 30mm x 30mm Miscellaneous: Compliance: RoHS Launched on: launching date
