Inspection camera e-CAM22_CUiMX8 - Sony Starvis IMX462

digitalVGAfull HD

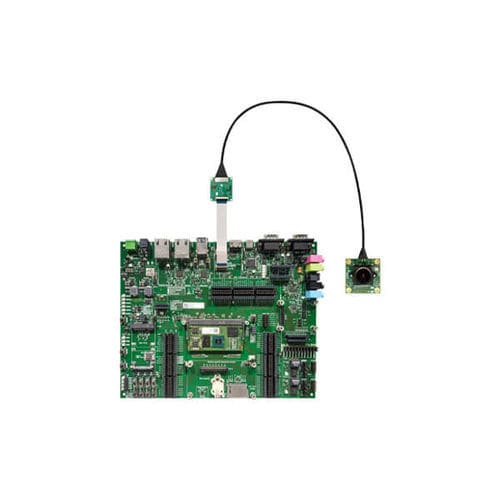

Houses e-CAM231_CUMI462_MOD Full HD Sony Starvis™ Camera Module with S-mount lens holder Ultra-Low light performance Plugs directly into Toradex® Verdin carrier board based on iMX8M Plus SoM e-CAM22_CUiMX8 is a Full HD custom lens camera module based on 1/2.8" Sony Starvis IMX462 CMOS image sensor. It is a color camera that supports UYVY image format and provided with S-mount (also known as M12 board lens) lens holder. This camera can be directly interfaced with the Toradex off-the-shelf Verdin development kit. The camera board is connected to the adaptor board through a micro coaxial cable. This adaptor board acts as a bridge between the camera module and the Toradex development kit. e-CAM22_CUiMX8 can stream uncompressed VGA at 60 fps, HD at 60 fps, FHD at 60 fps. Key features: Frame Rate: Streams HD @ 60 fps & Full HD @ 60 fps Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY streaming High speed 4-lane MIPI CSI-2 interface Standard M12 lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable multi-board solution Interface: Interface: 4-Lane MIPI CSI-2 Connector: 24pin FPC connector Cable length: 30cm Sensor features: Sensor: IMX462 from Sony® Starvis Focus Type: Fixed focus Sensor Resolution: Full HD Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/ 2.8" Output Format: Uncompressed UYVY Pixel Size: 2.9 μm x 2.9 μm Sensor Active Area: 1920H x 1080V Array Size: 1920H x 1080V G Sensitivity: 2376mV for HCG mode; 921mV for LCG mode Holder: M12 (S-Mount) FOV: 132°(D), 113°(H), 61°(V) (with the lens provided by e-con)
