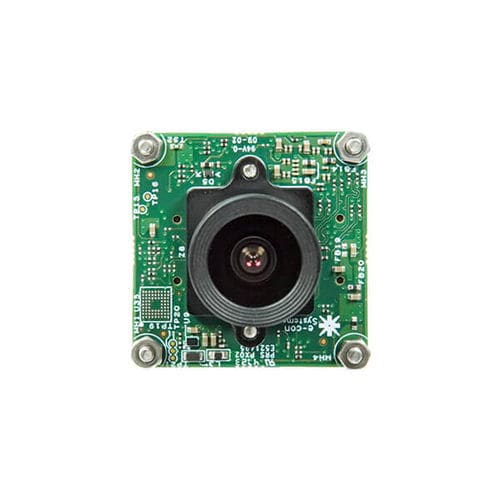

Patient monitoring camera module e-CAM85_CUMI0830C_MOD

digitalHDfull HD

4K camera module based on onsemi® AR0830 sensor Supported interfaces - USB / MIPI / GMSL On-board high performance ISP Wake on Motion - Enables sensor to remain in low-power state until motion detected * Super Low Power Mode* e-CAM85_CUMI0830C_MOD is a 4K, 8 MP custom lens camera module featuring a 1/2.9" AR0830 CMOS image sensor from onsemi™. The AR0830 sensor supports the UYVY image format and is equipped with an S-mount lens holder, also known as an M12 board lens. This camera module is capable of streaming uncompressed video with various frame rates: HD at 120 fps, FHD at 120 fps, and 4K at 30 fps in UYVY format. It is designed for seamless connection to any application processor with MIPI, USB and GMSL interface. It supports the Wake on Motion feature, keeping the sensor in a low-power state until motion is sensed. This unique Super Low Power (SLP) mode consumes only 2mW. When motion is detected, the sensor immediately delivers 4K high-quality streaming, capturing fine details under varying lighting conditions. Key features: Frame Rate: Full HD @ 120 fps & 8MP (4K) @ 30fps Output format: UYVY High-speed MIPI CSI-2 interface S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements Small form-factor Module features: Sensor: AR0830 from onsemi® Focus Type: Fixed focus Chroma: Color Shutter type: Electronic Rolling Shutter Optical Format: 1/2.9" Output Format: UYVY Pixel size: 1.4 μm x 1.4 μm Back Side Illuminated (BSI) Sensor Active Area: 3840 (H) x 2160 (V) Array Size: 3840 (H) x 2160 (V) SNR: 39.9dB Dynamic Range: 73dB Holder: M12 (S-Mount)
